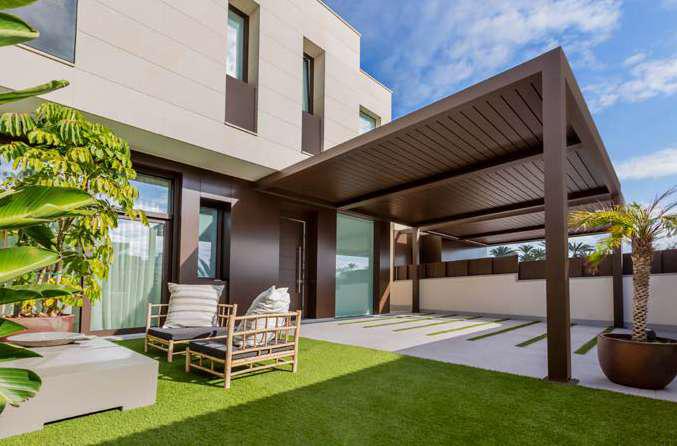

Bioclimatic pergola

From €7,172 (Installation not included)

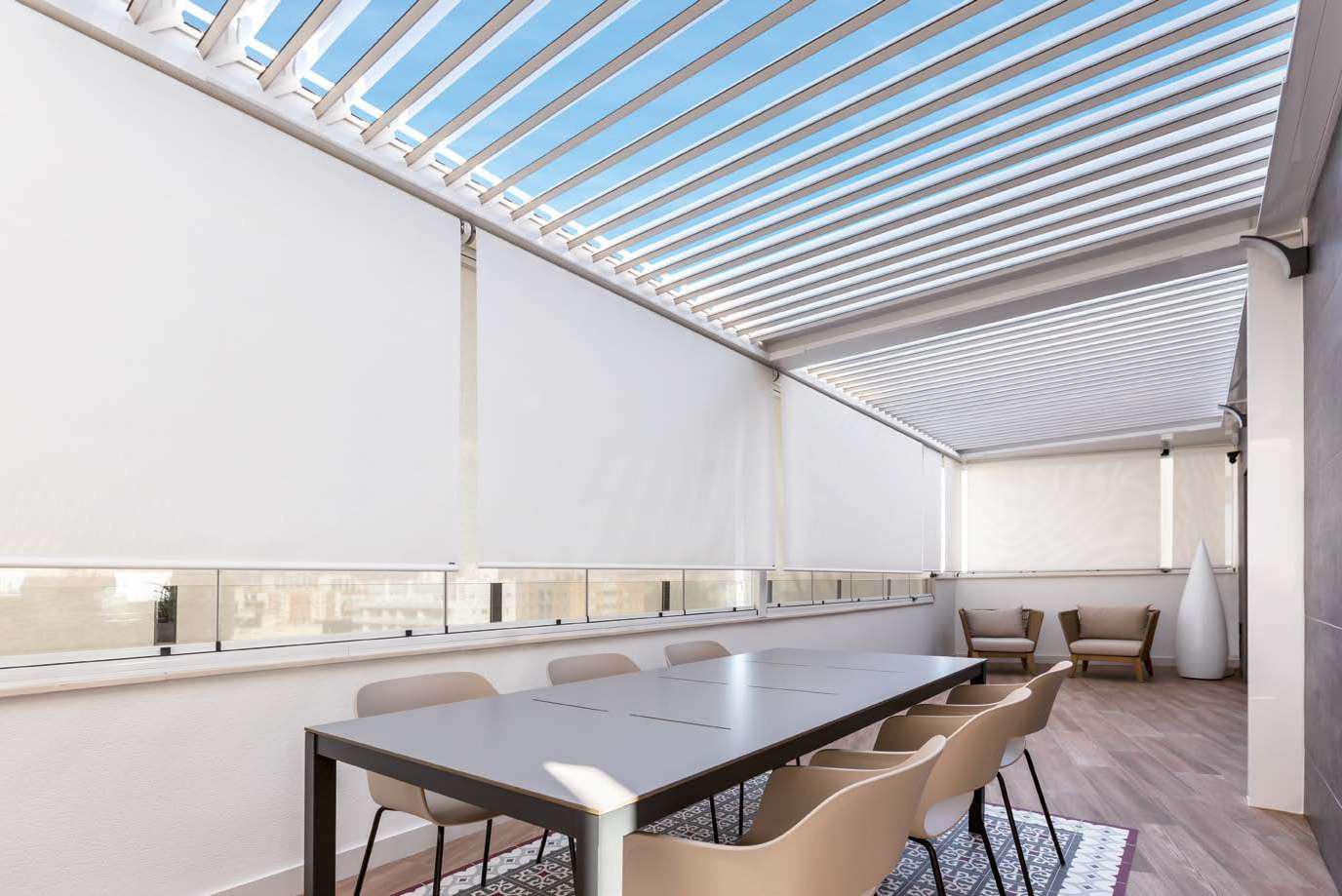

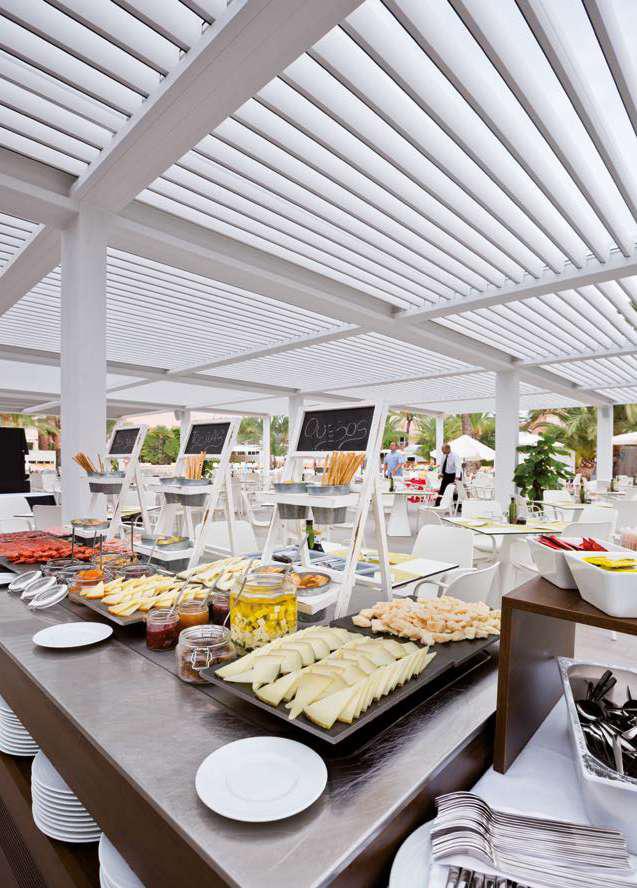

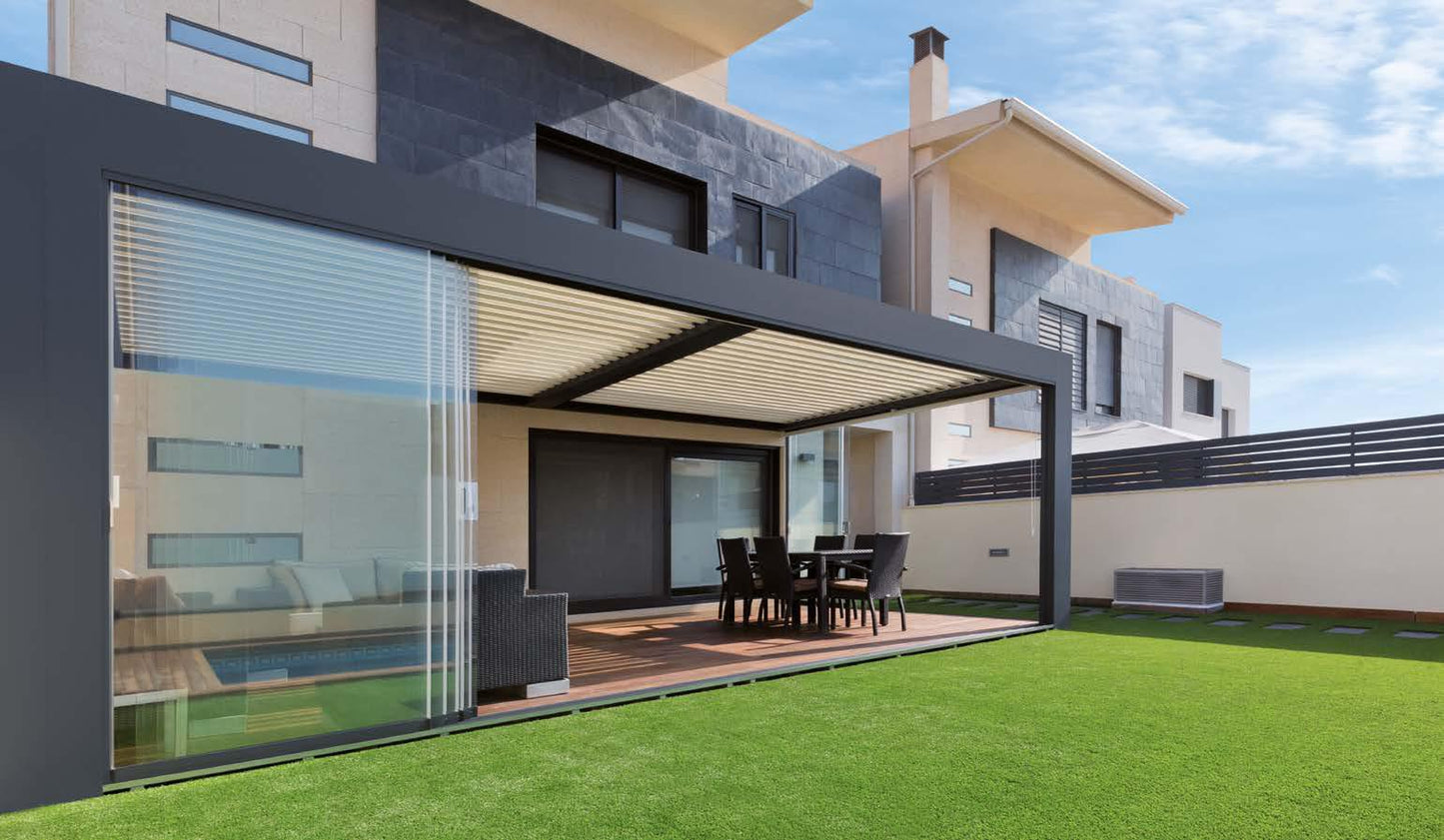

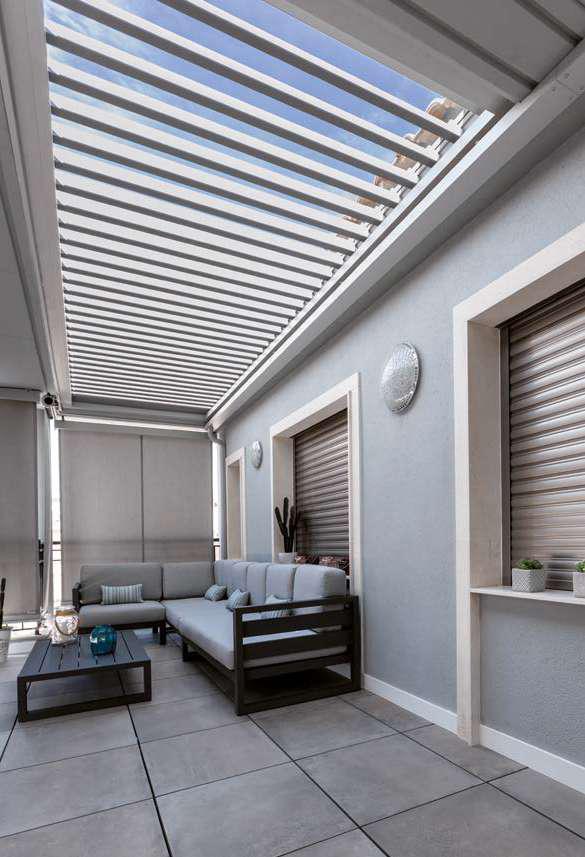

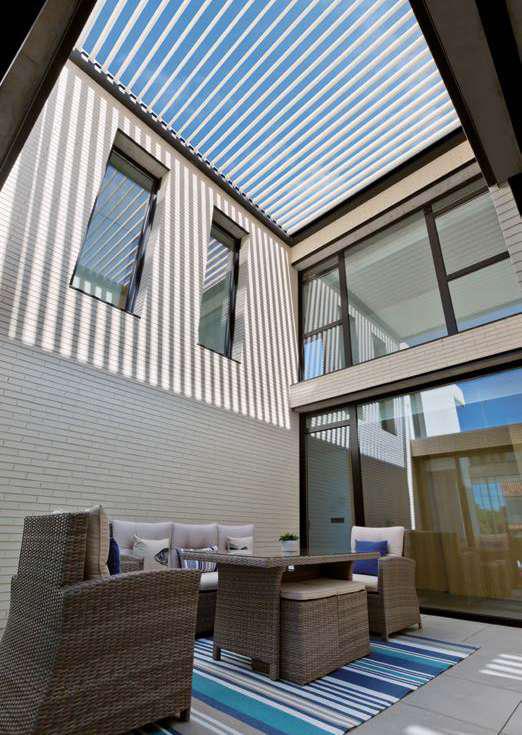

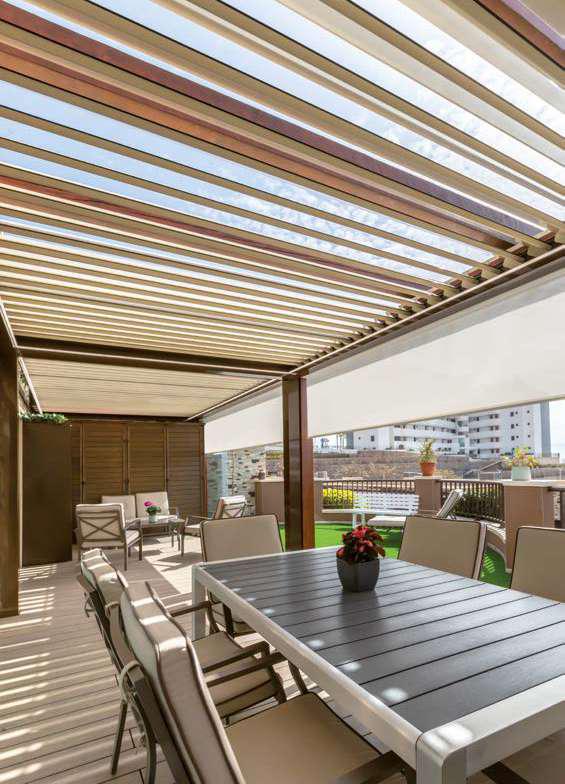

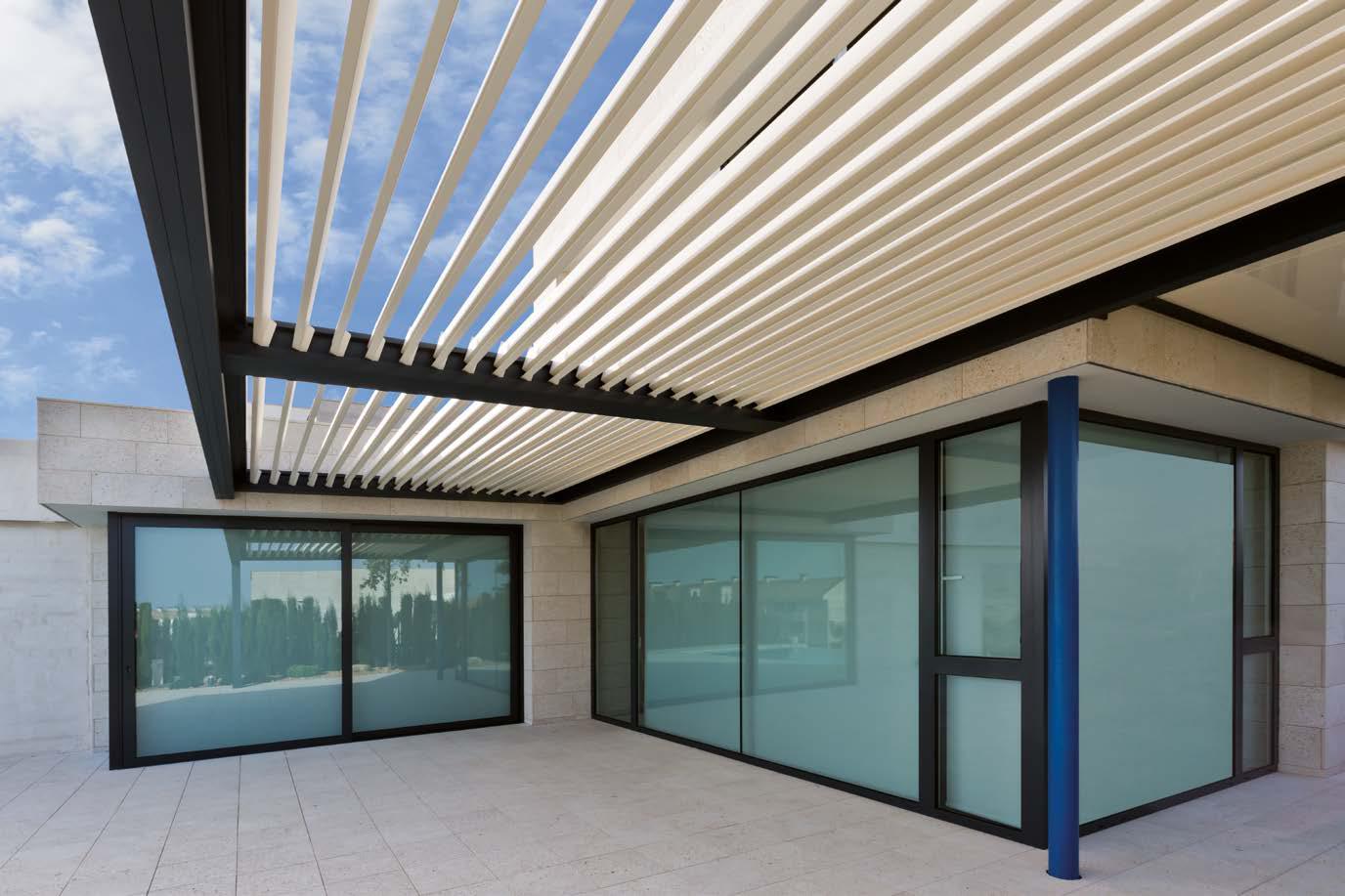

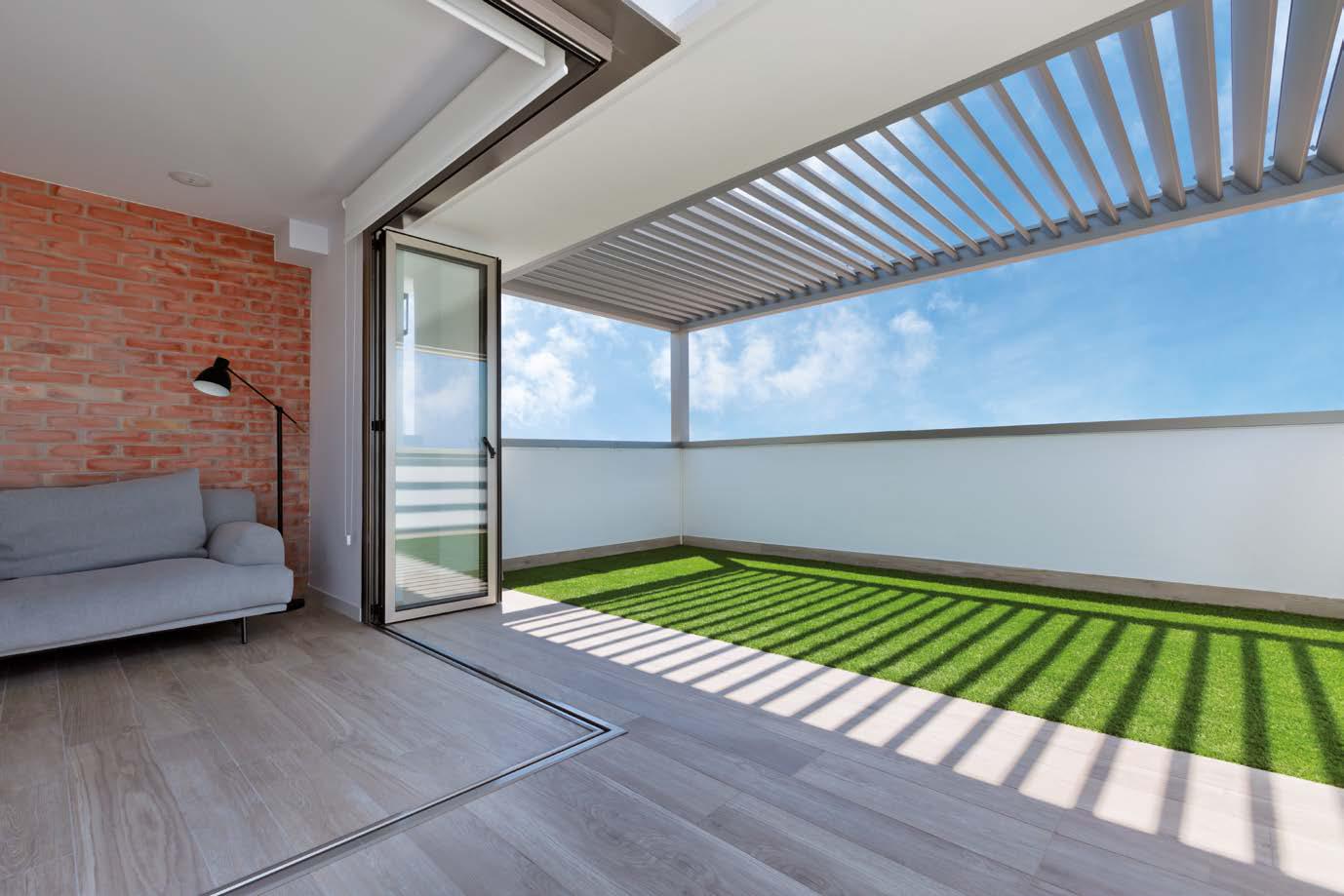

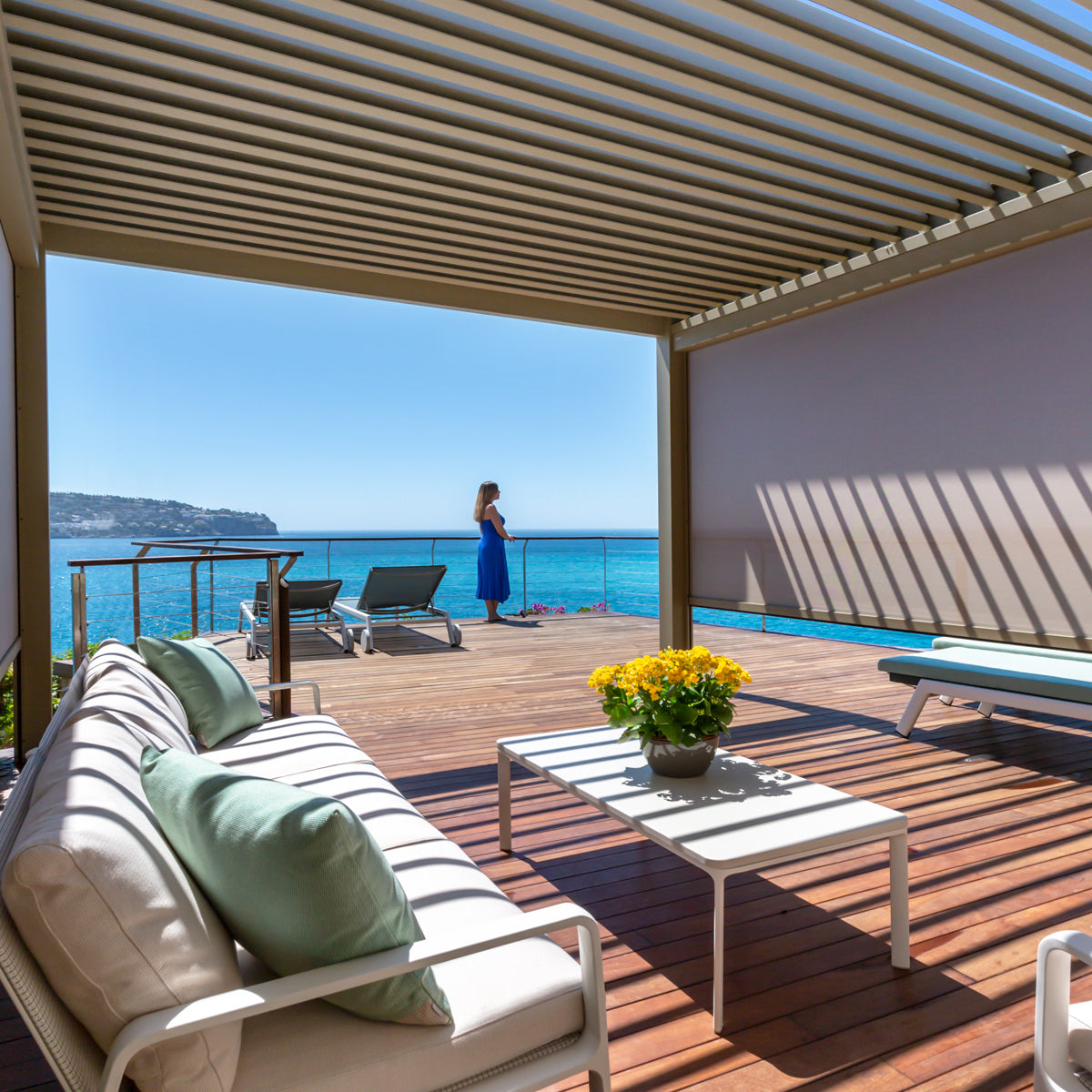

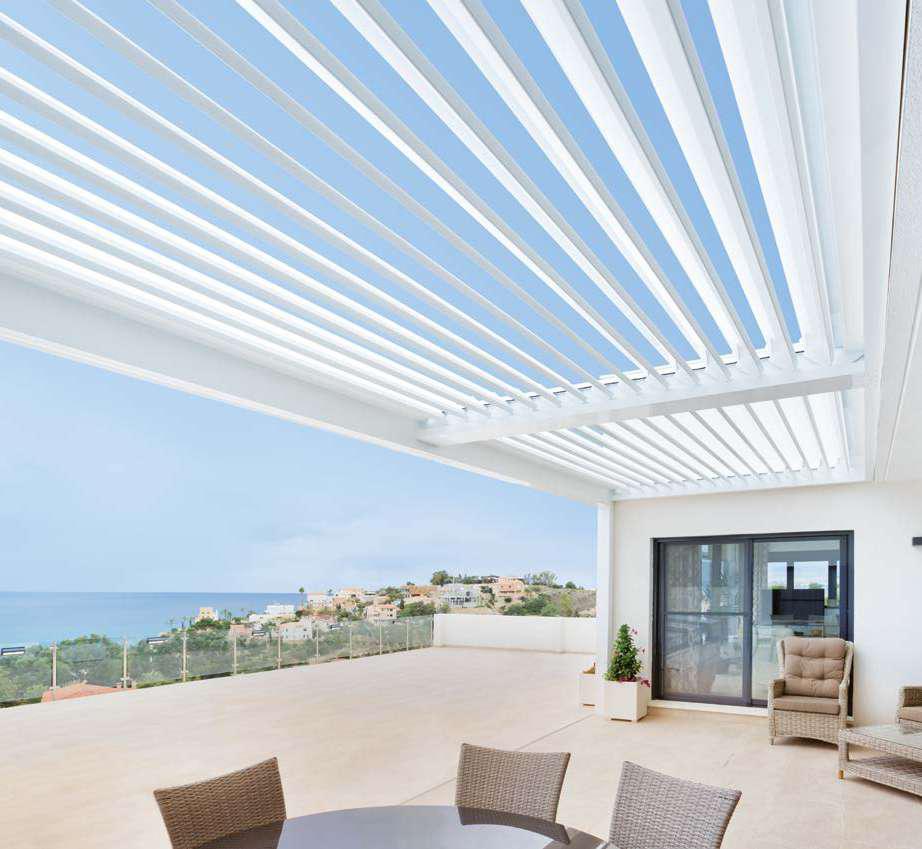

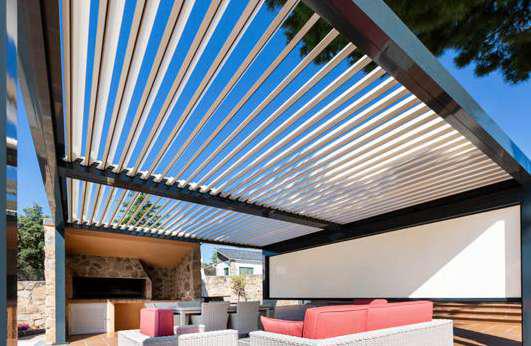

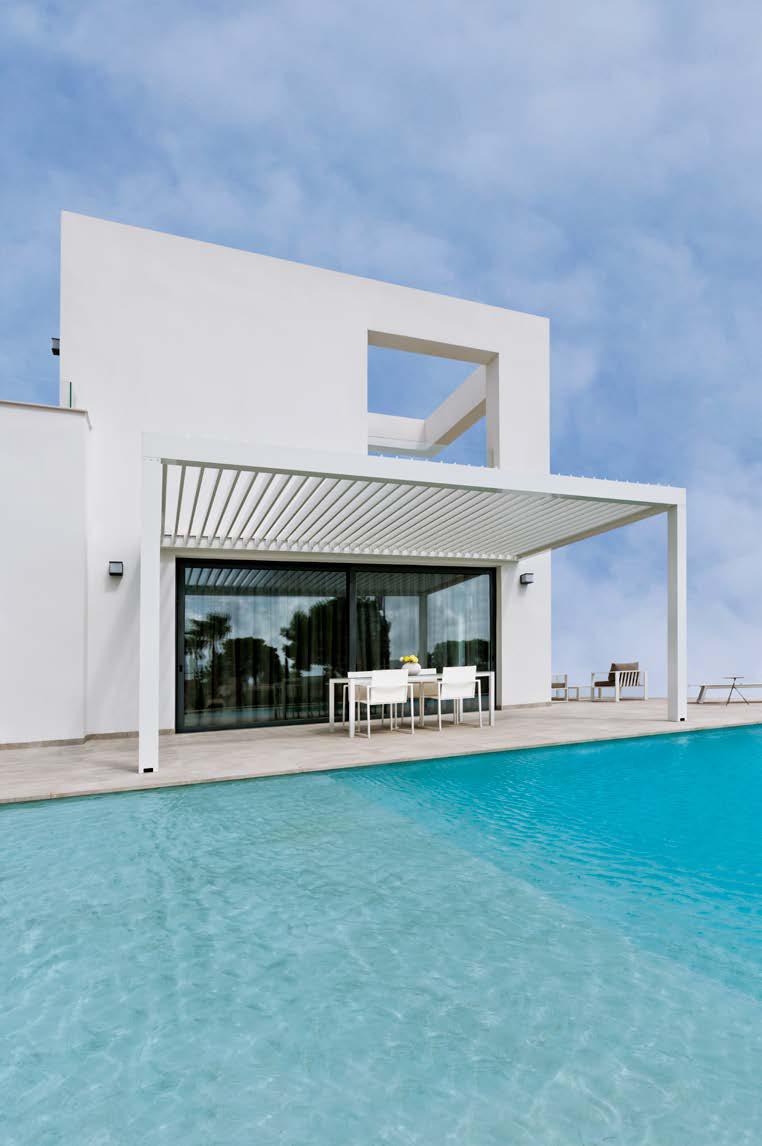

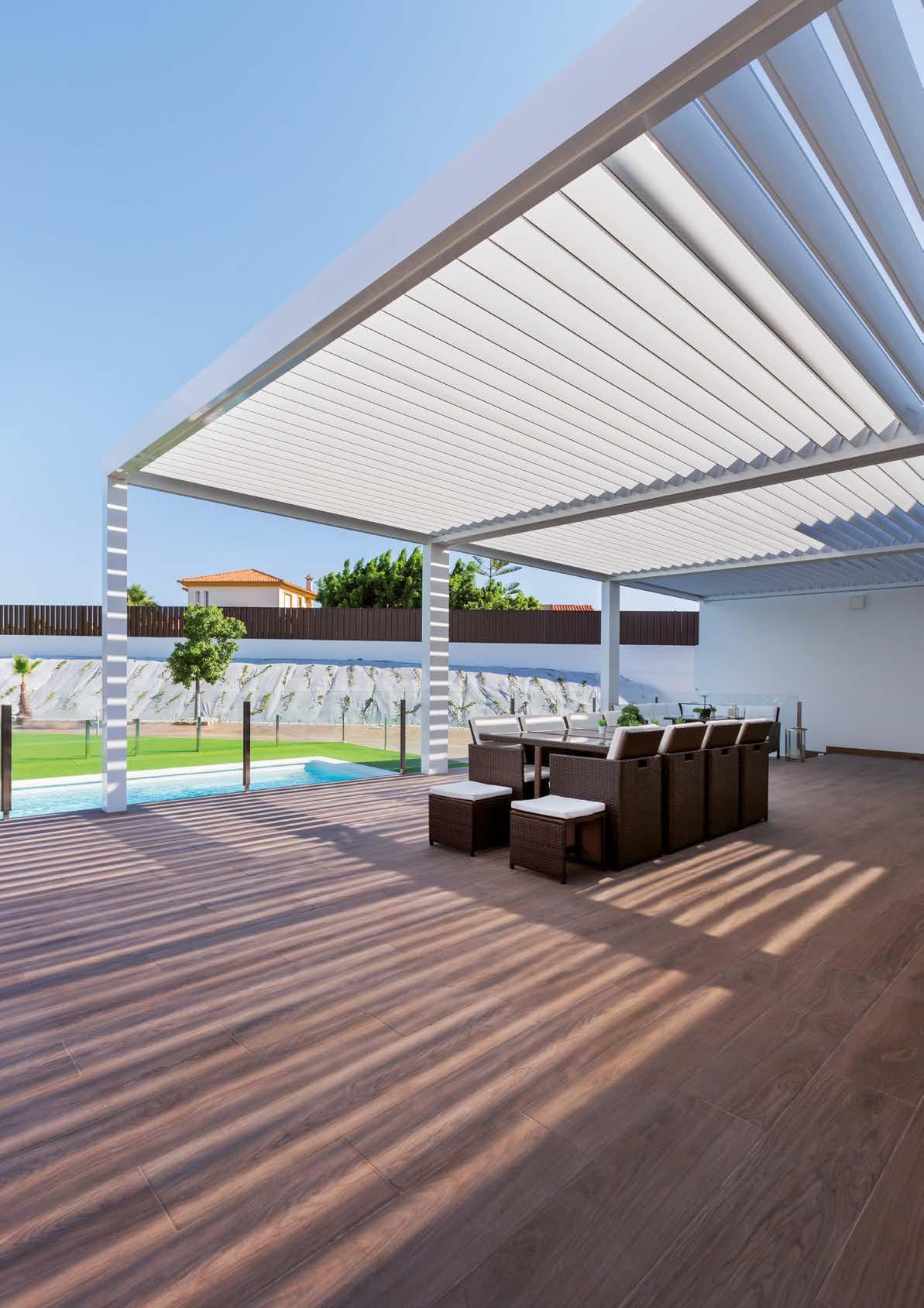

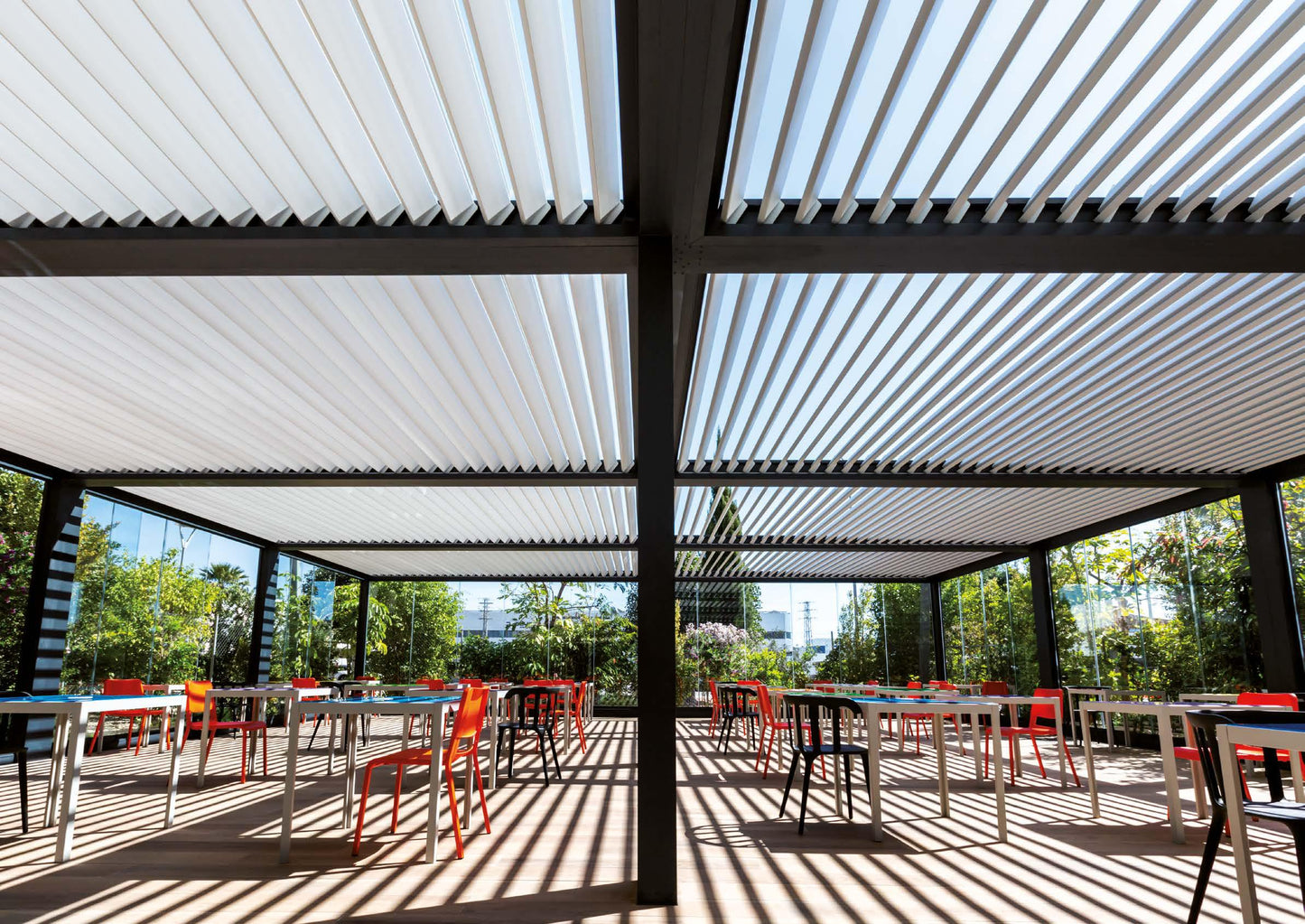

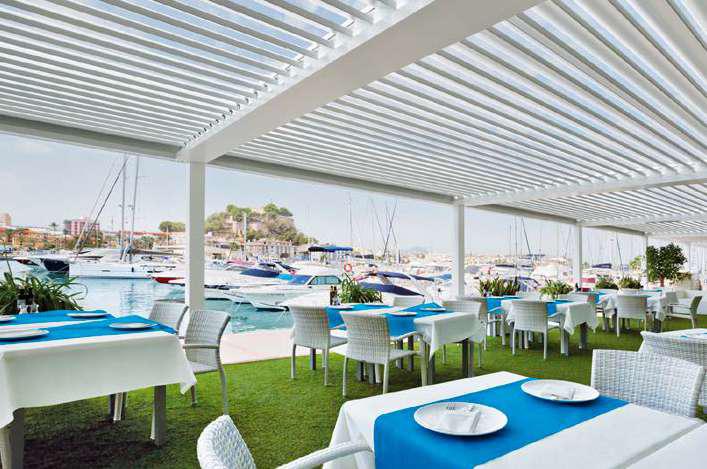

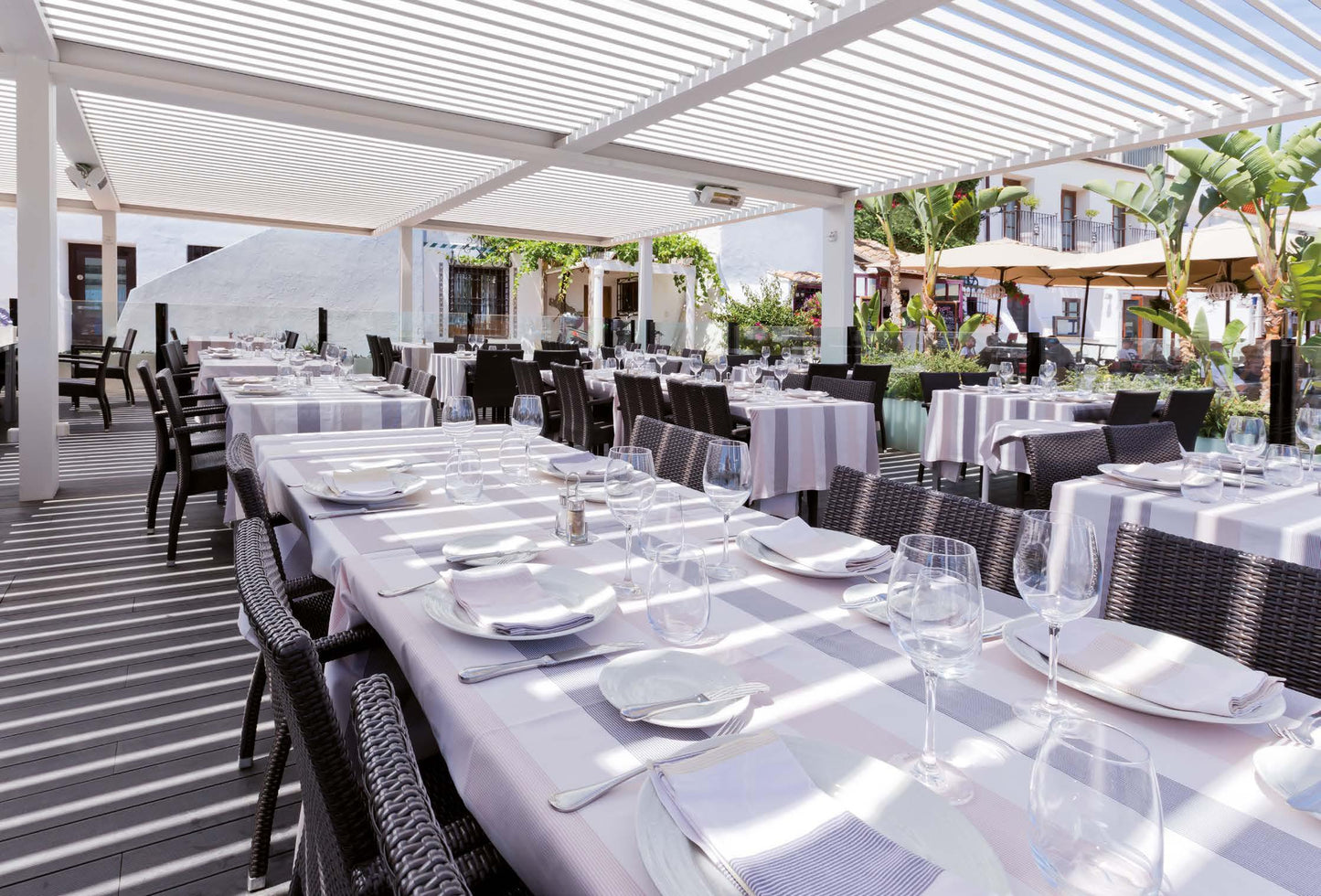

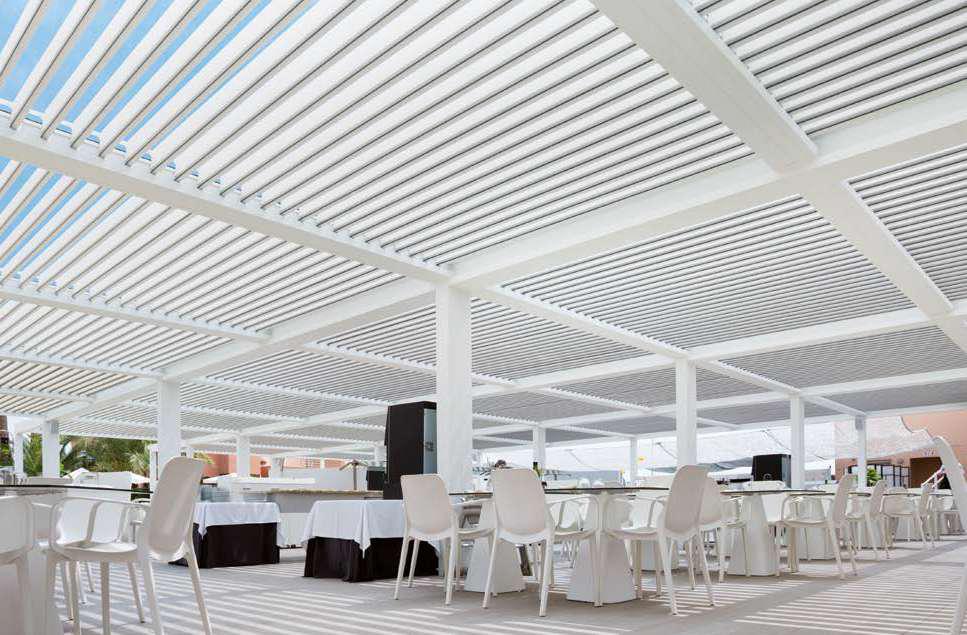

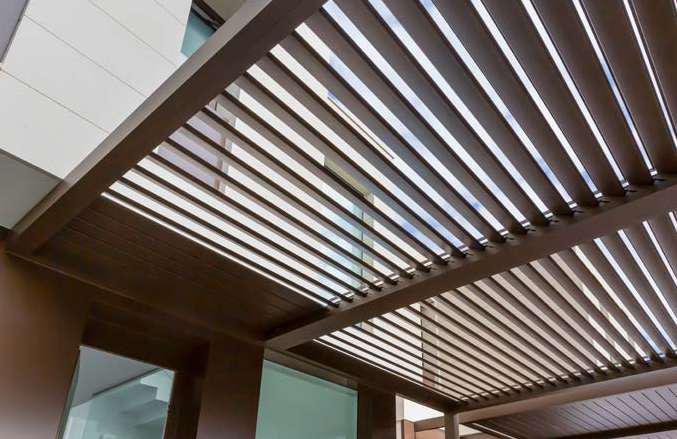

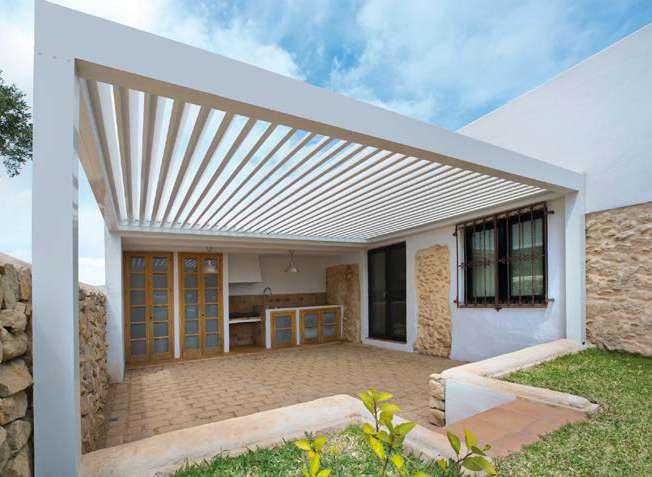

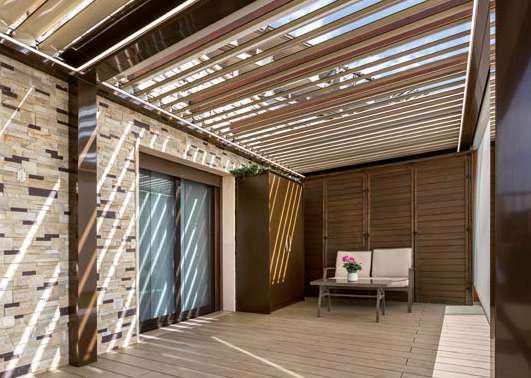

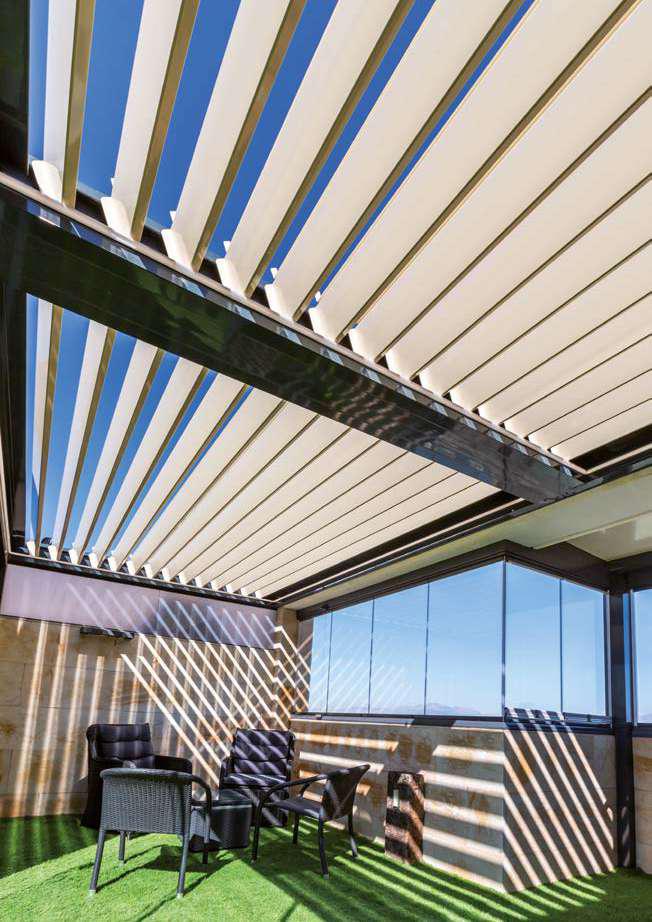

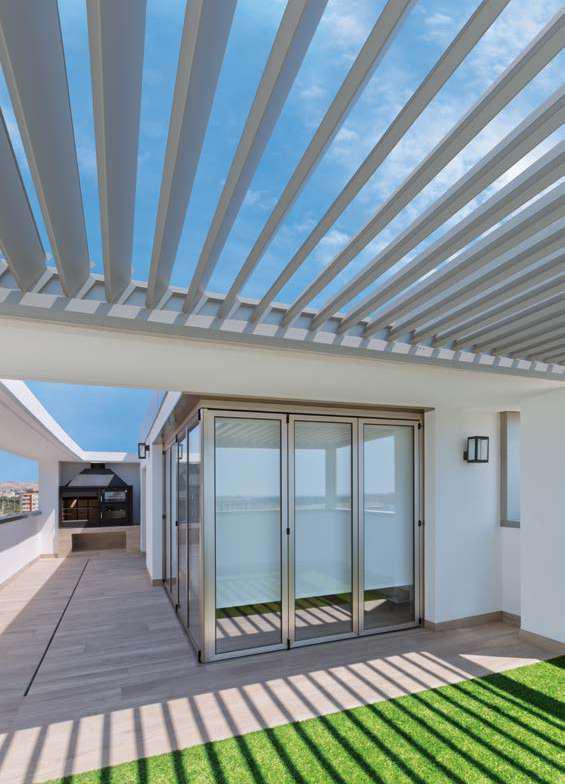

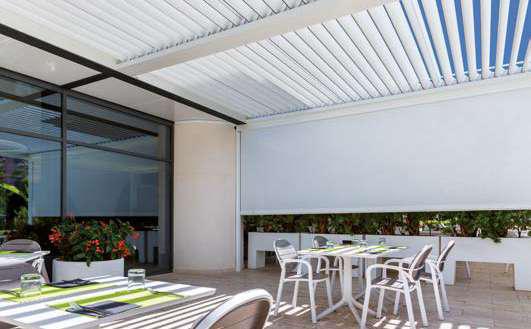

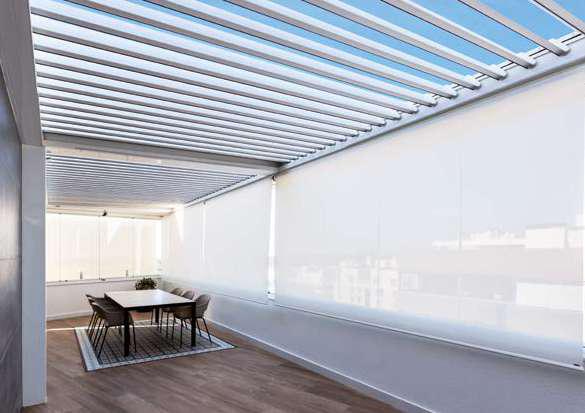

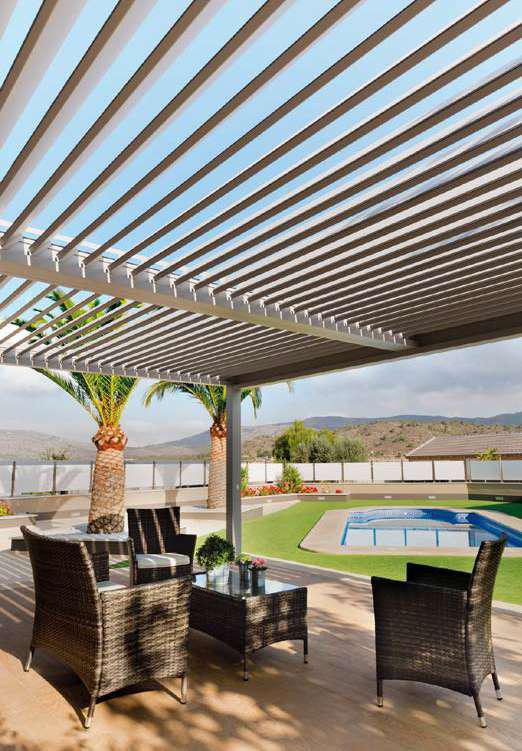

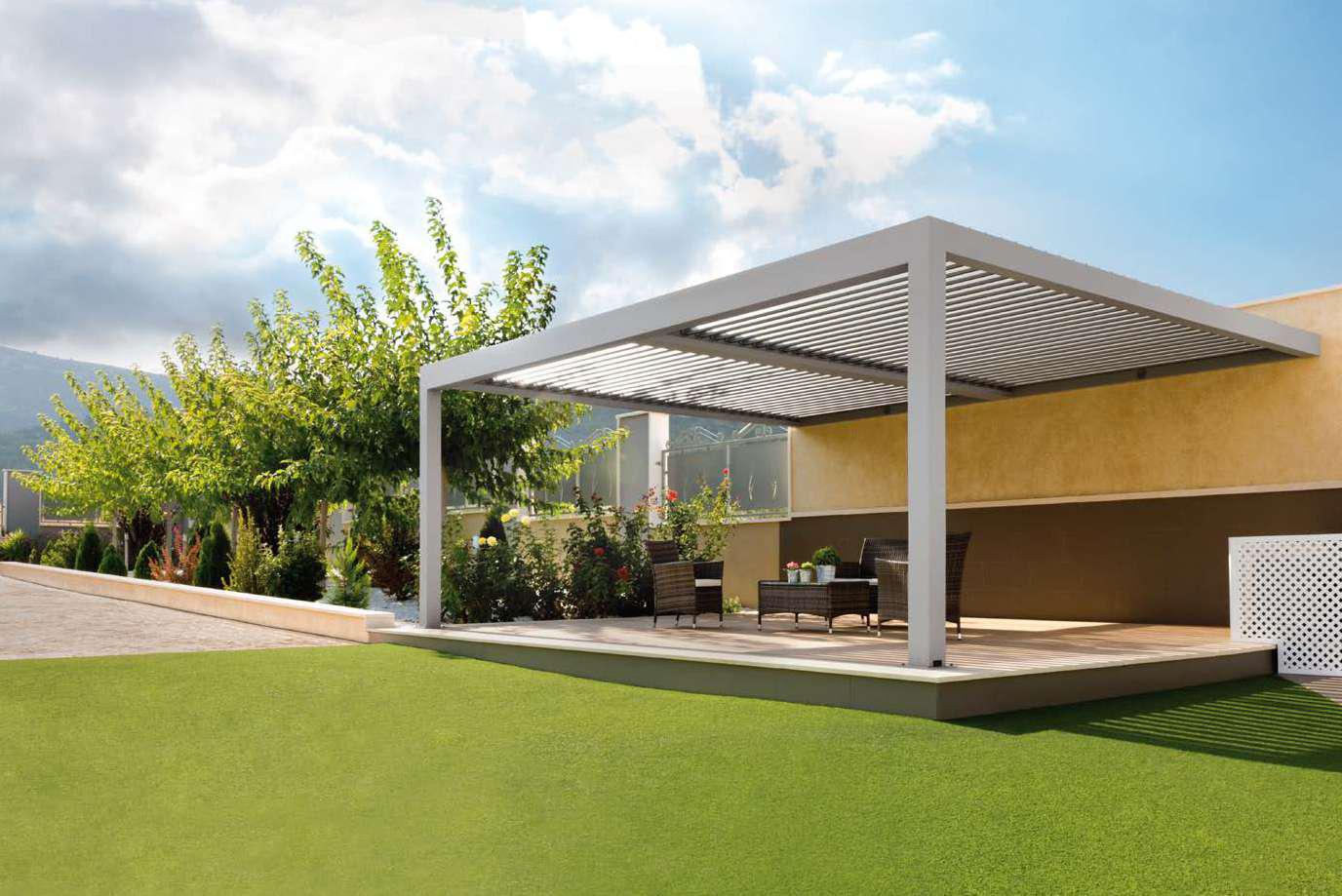

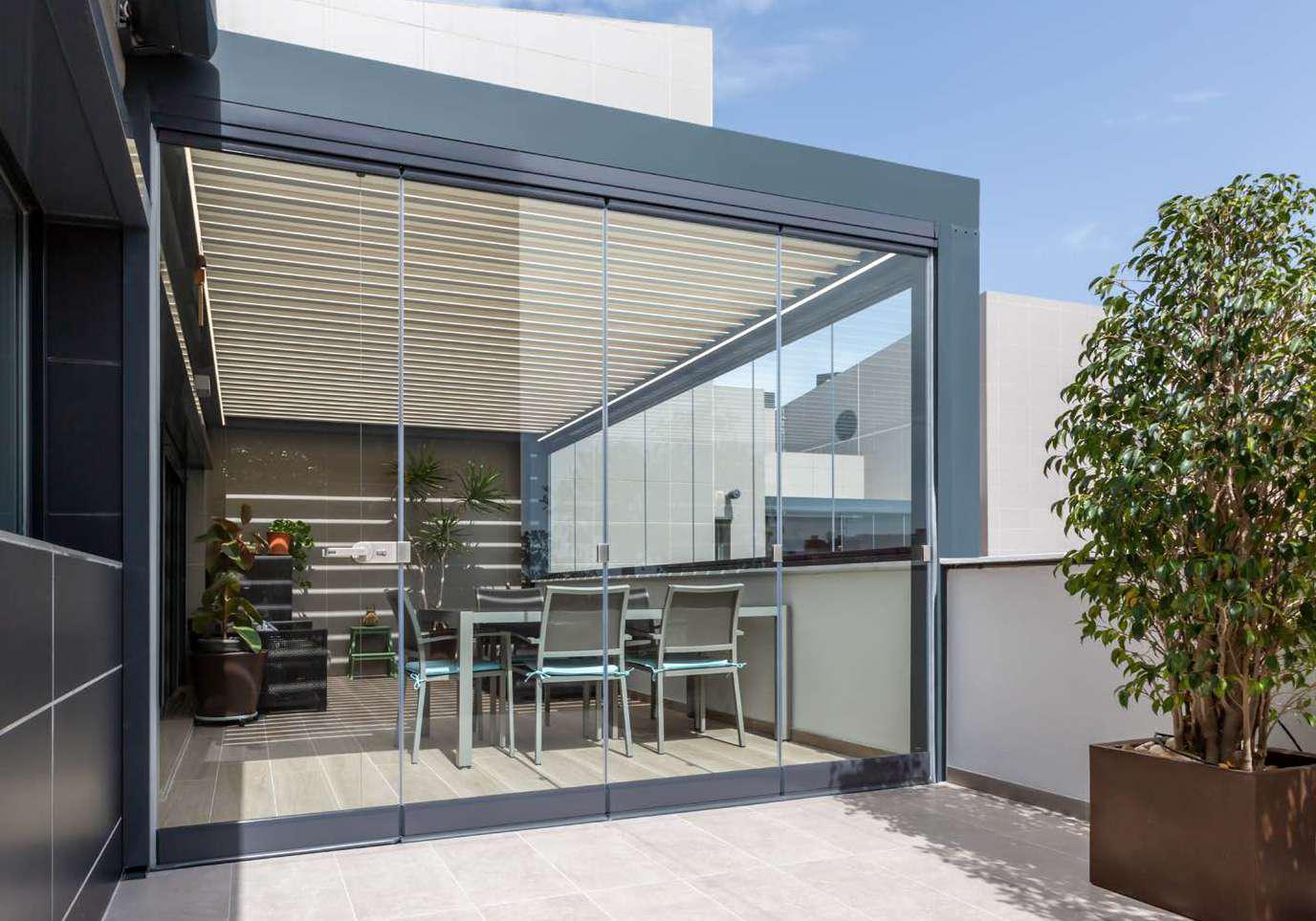

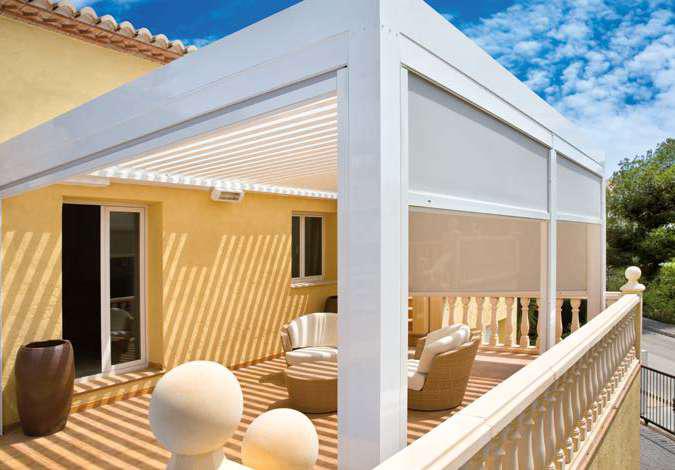

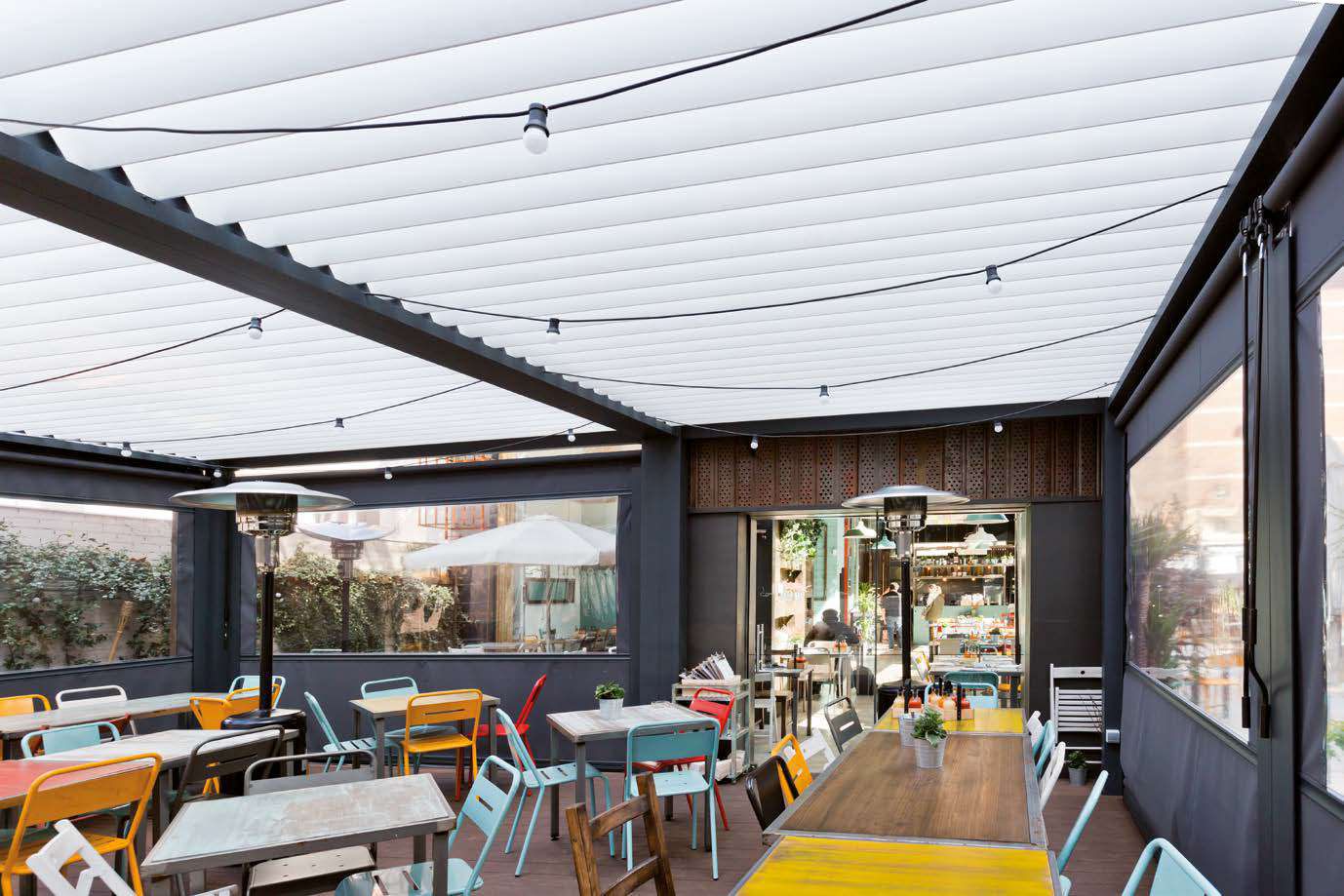

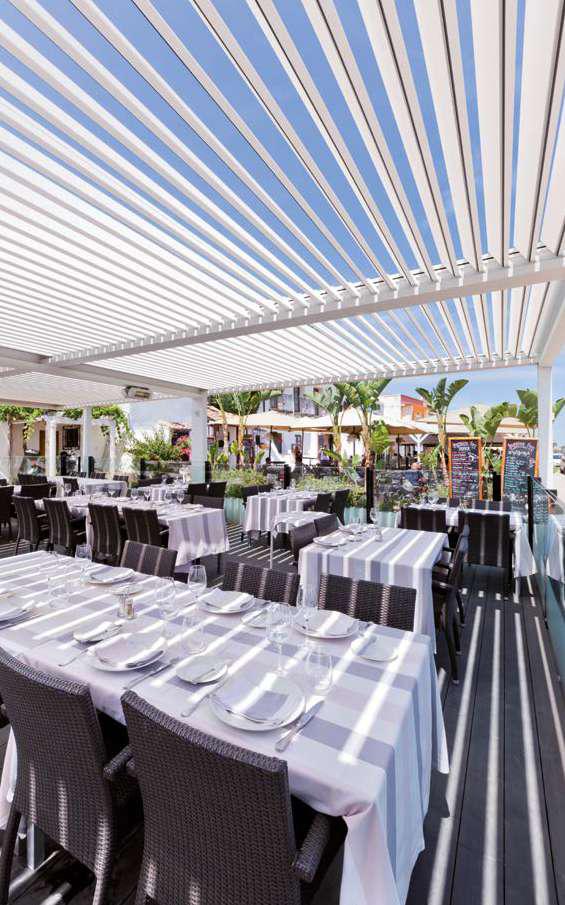

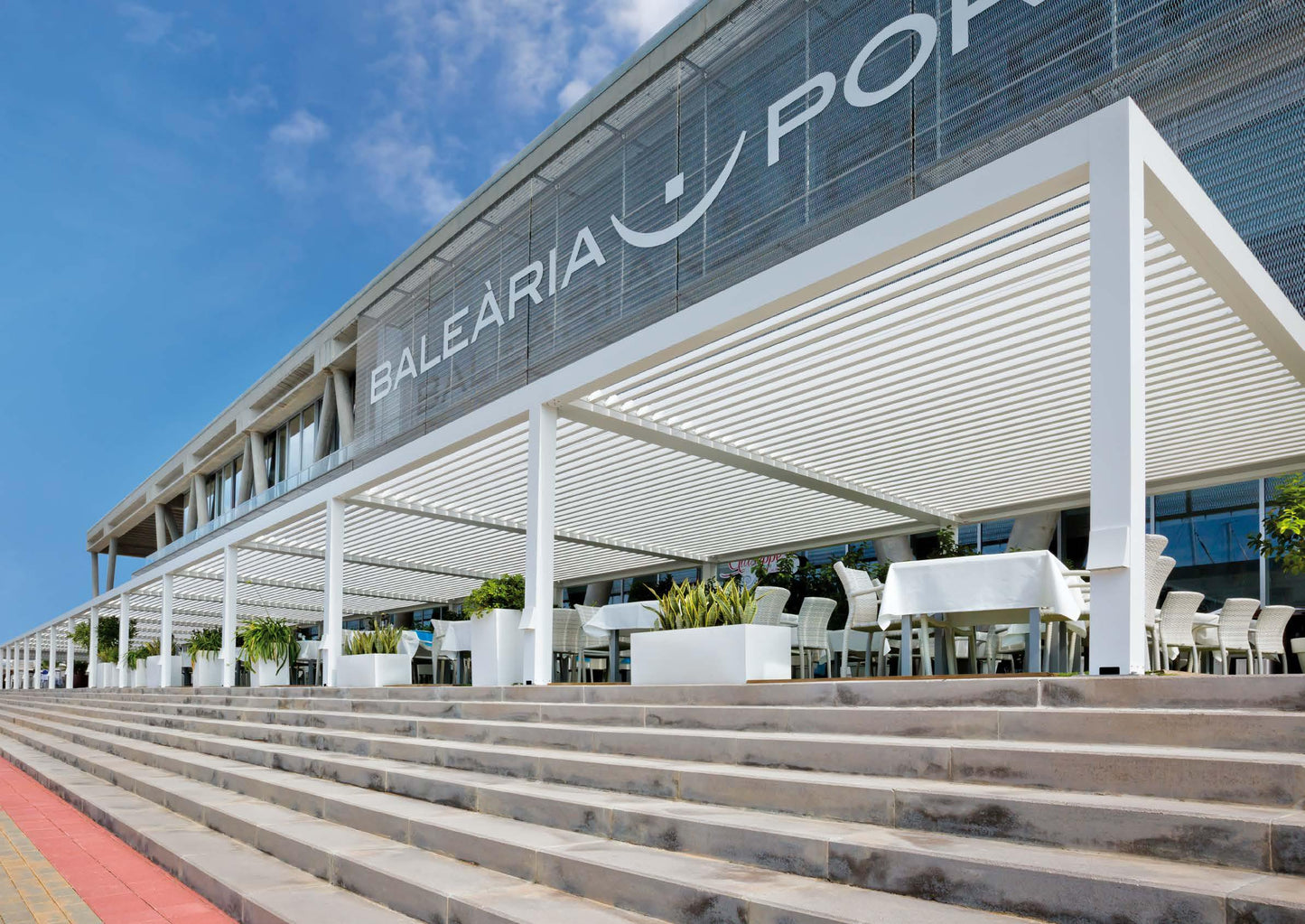

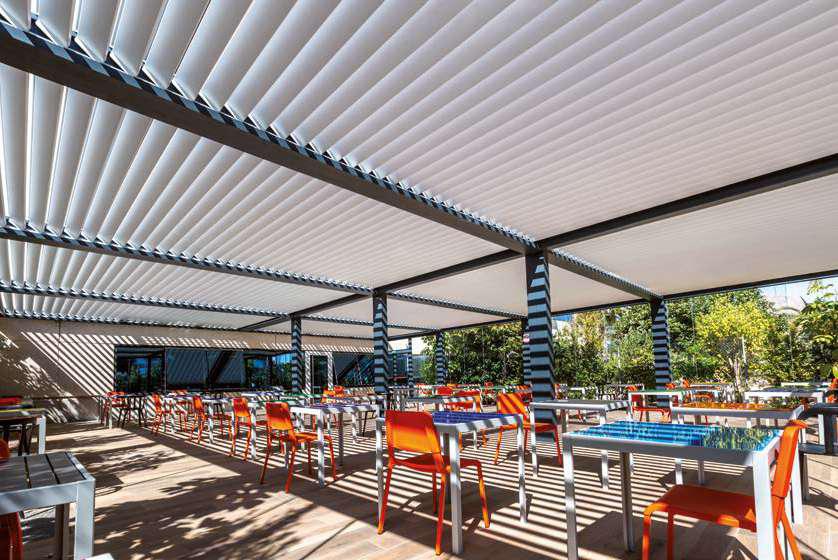

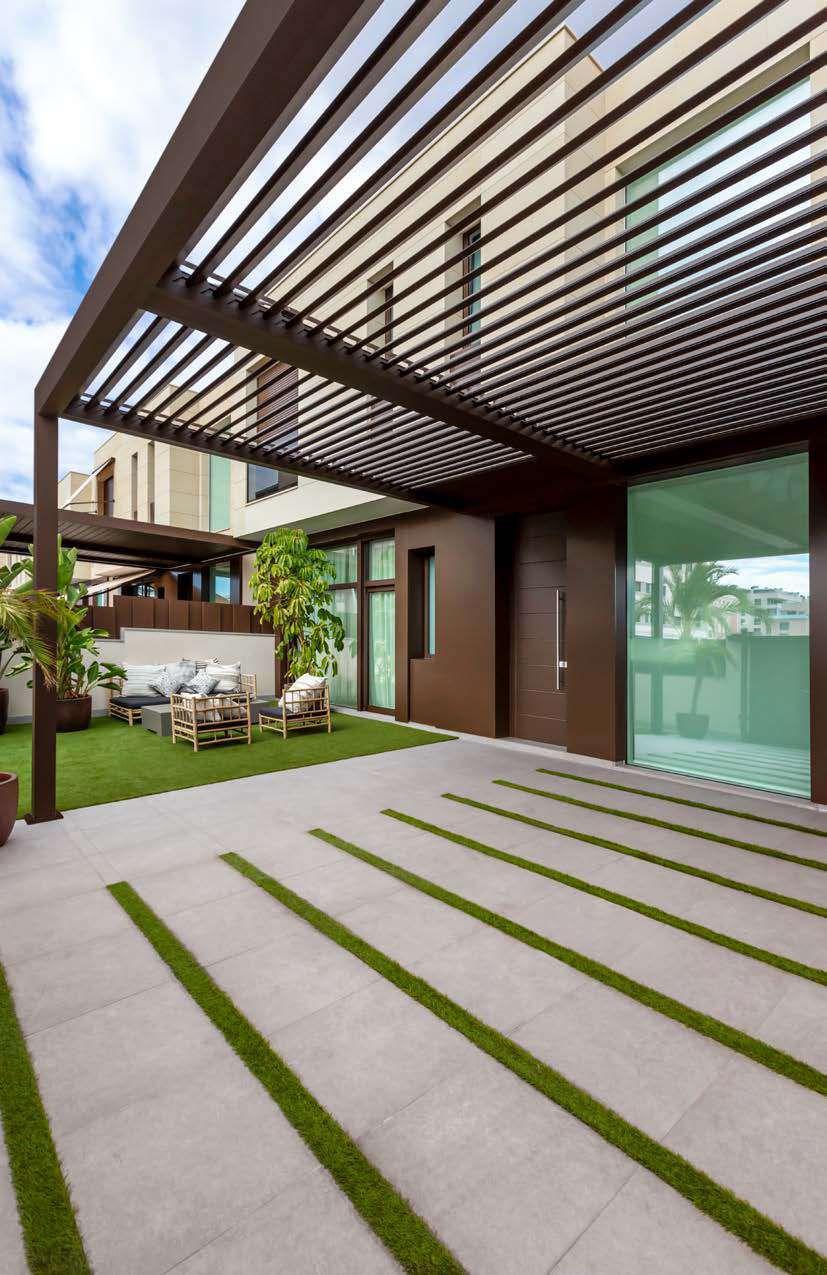

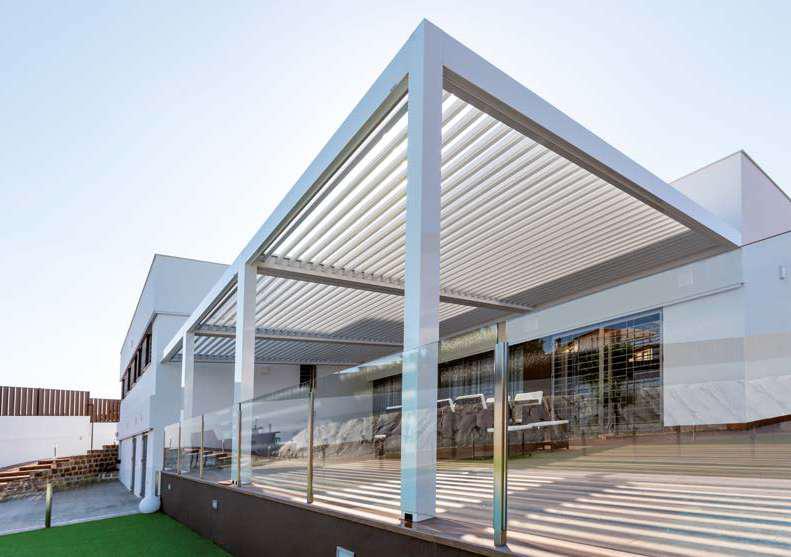

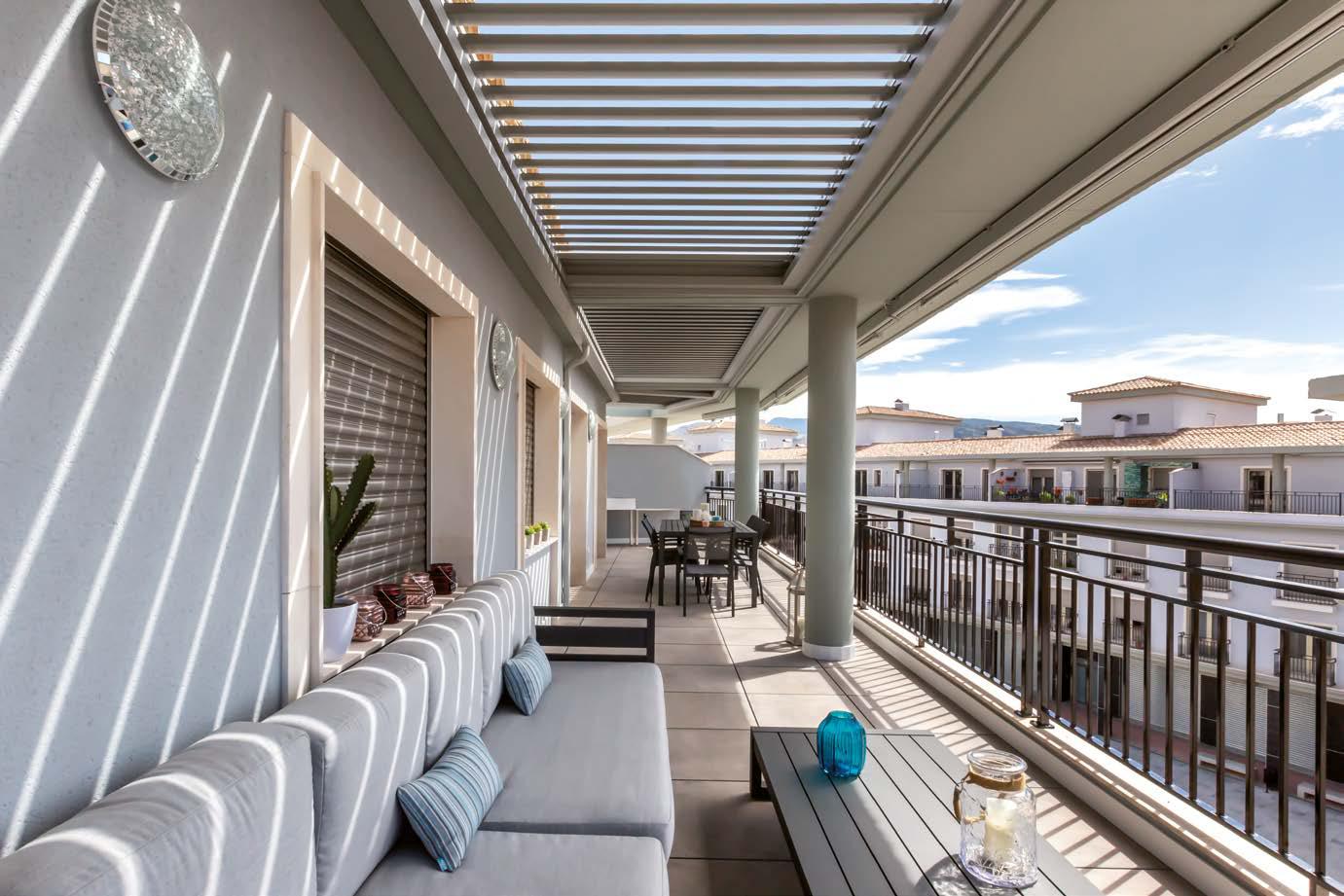

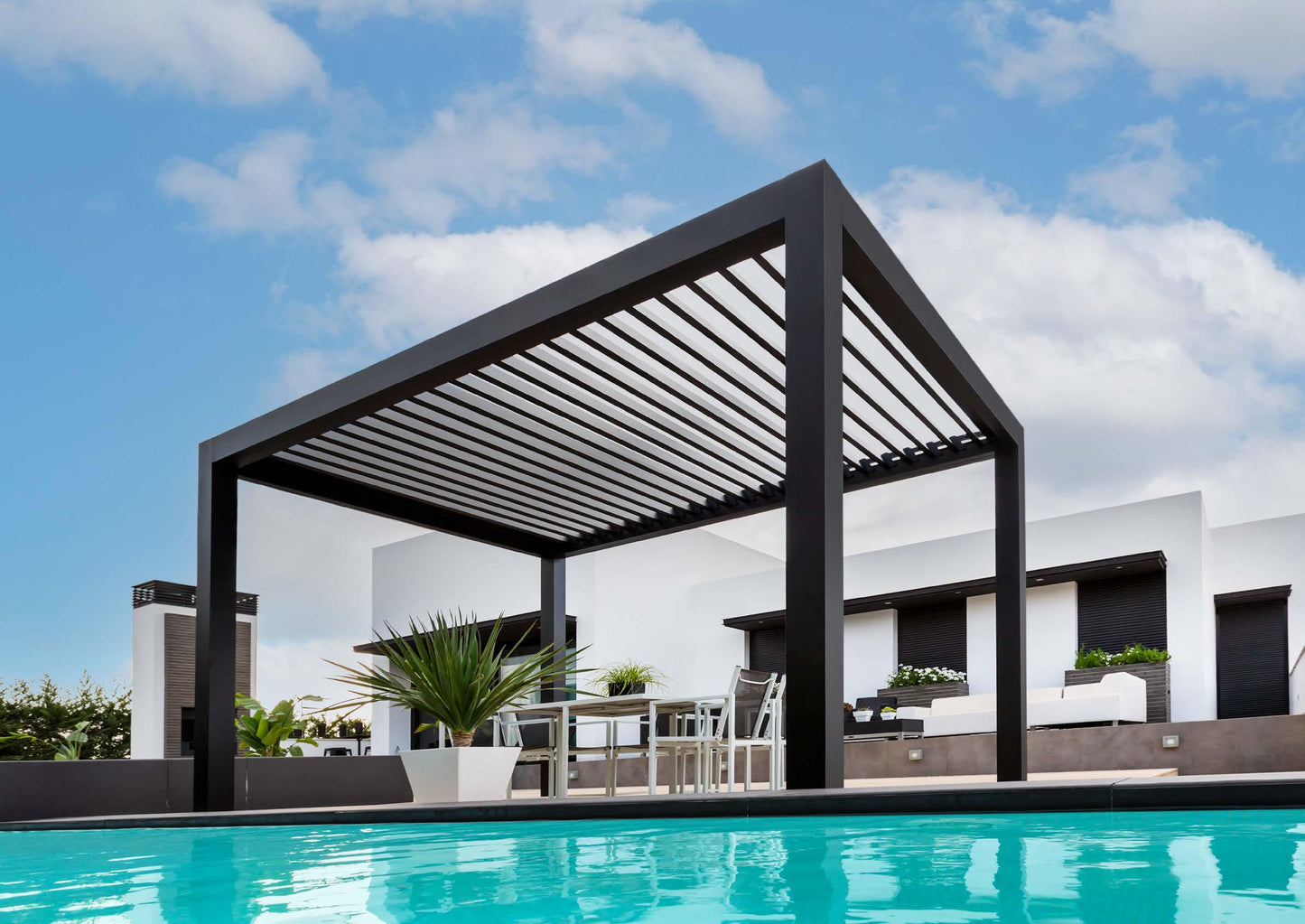

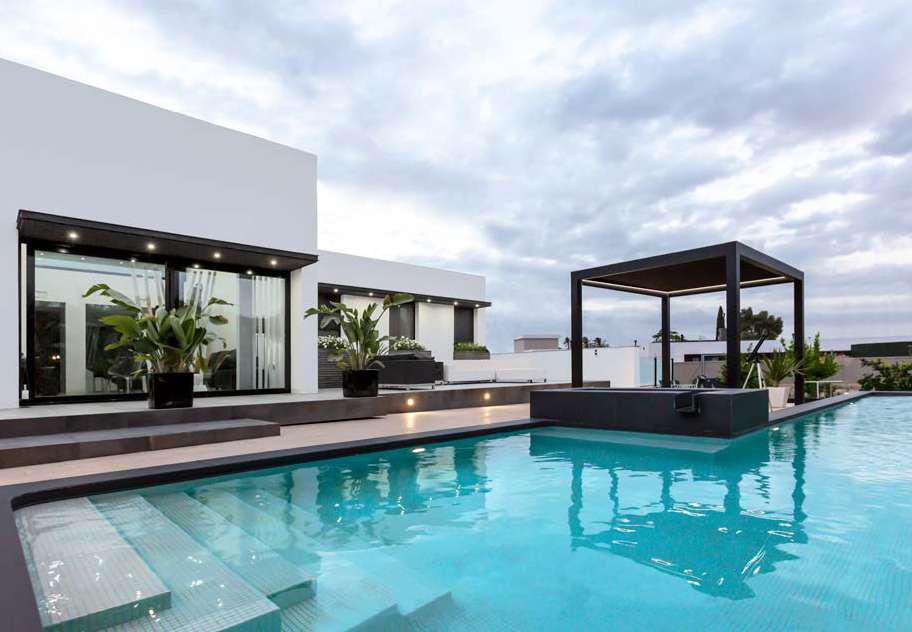

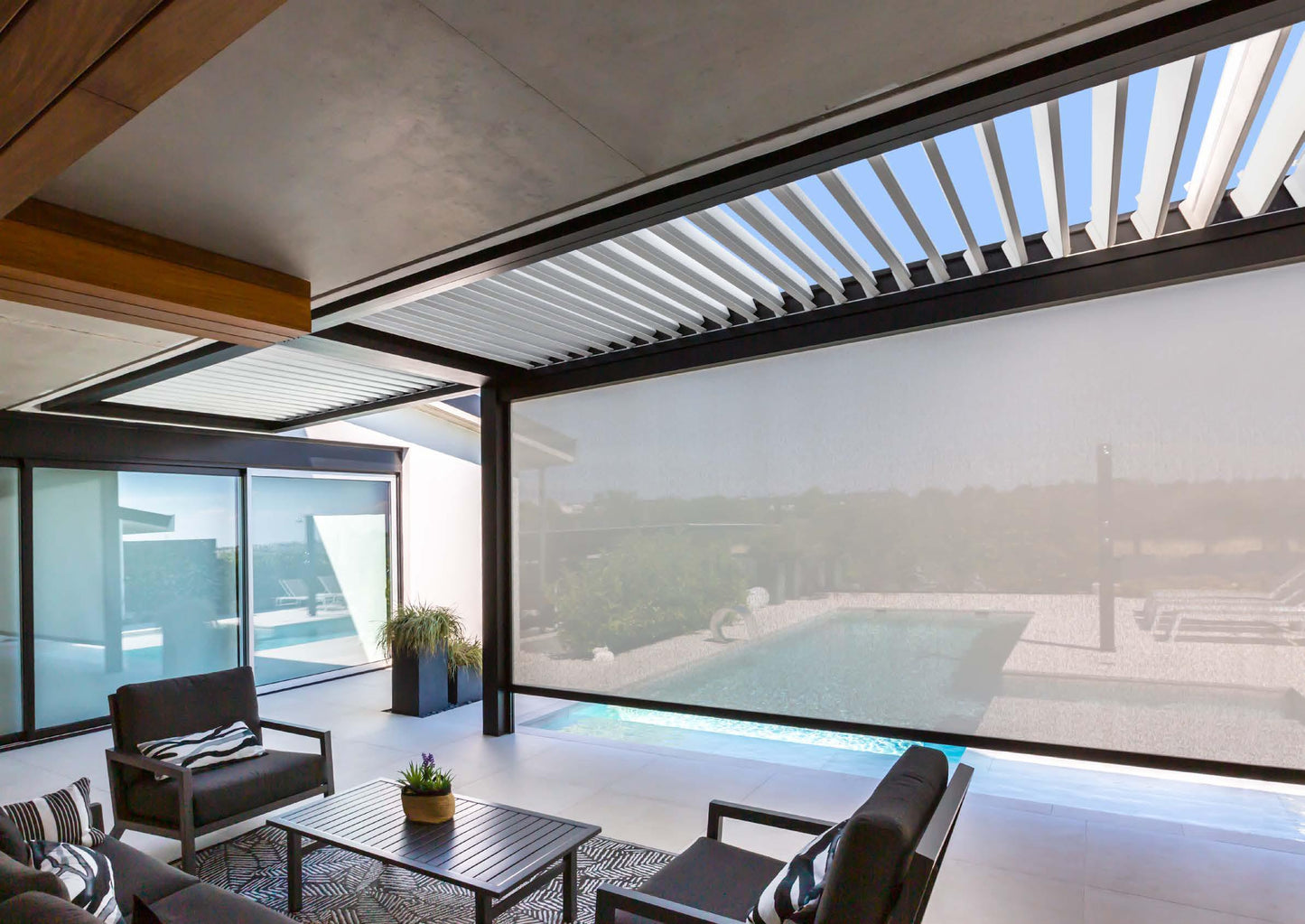

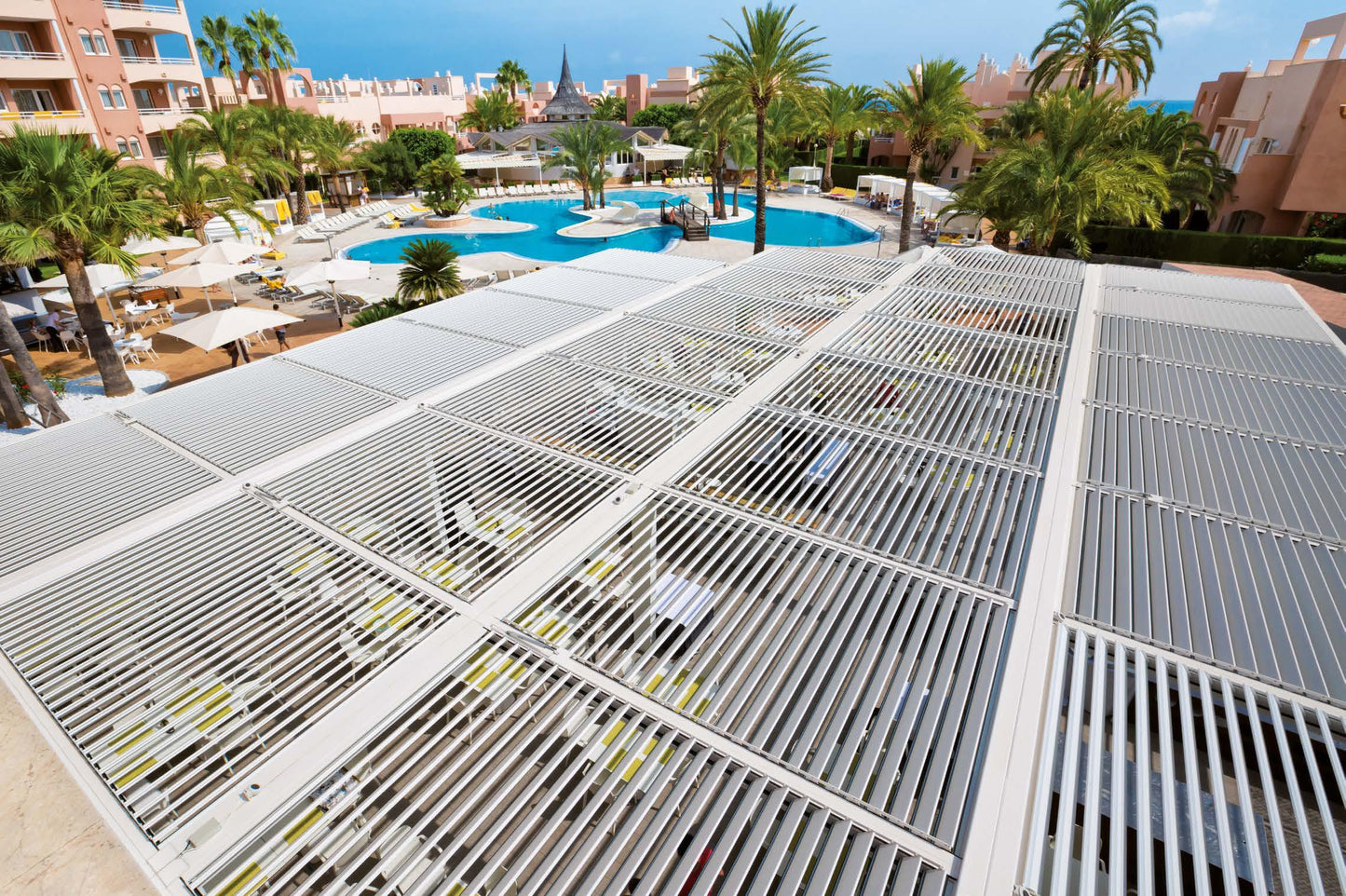

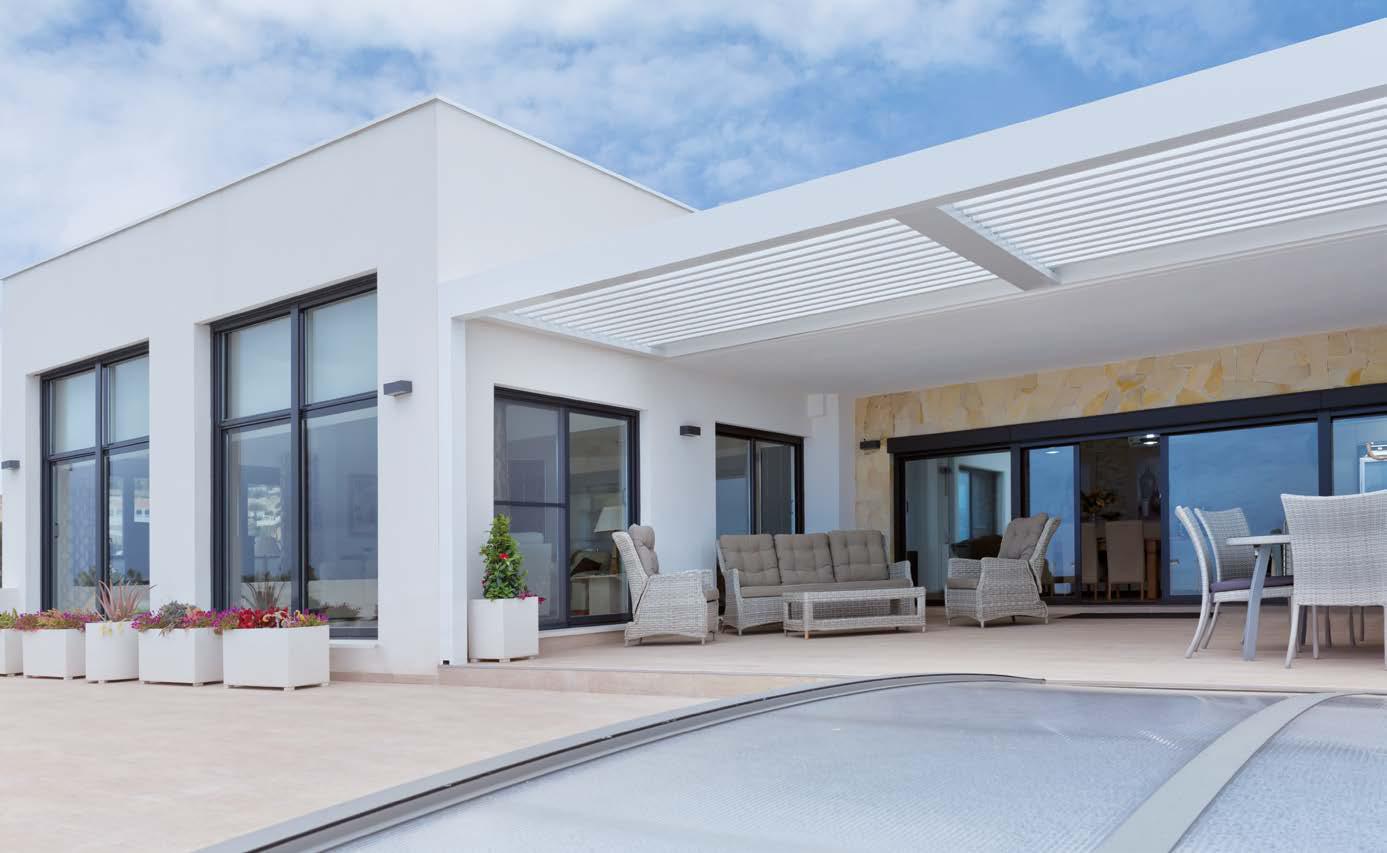

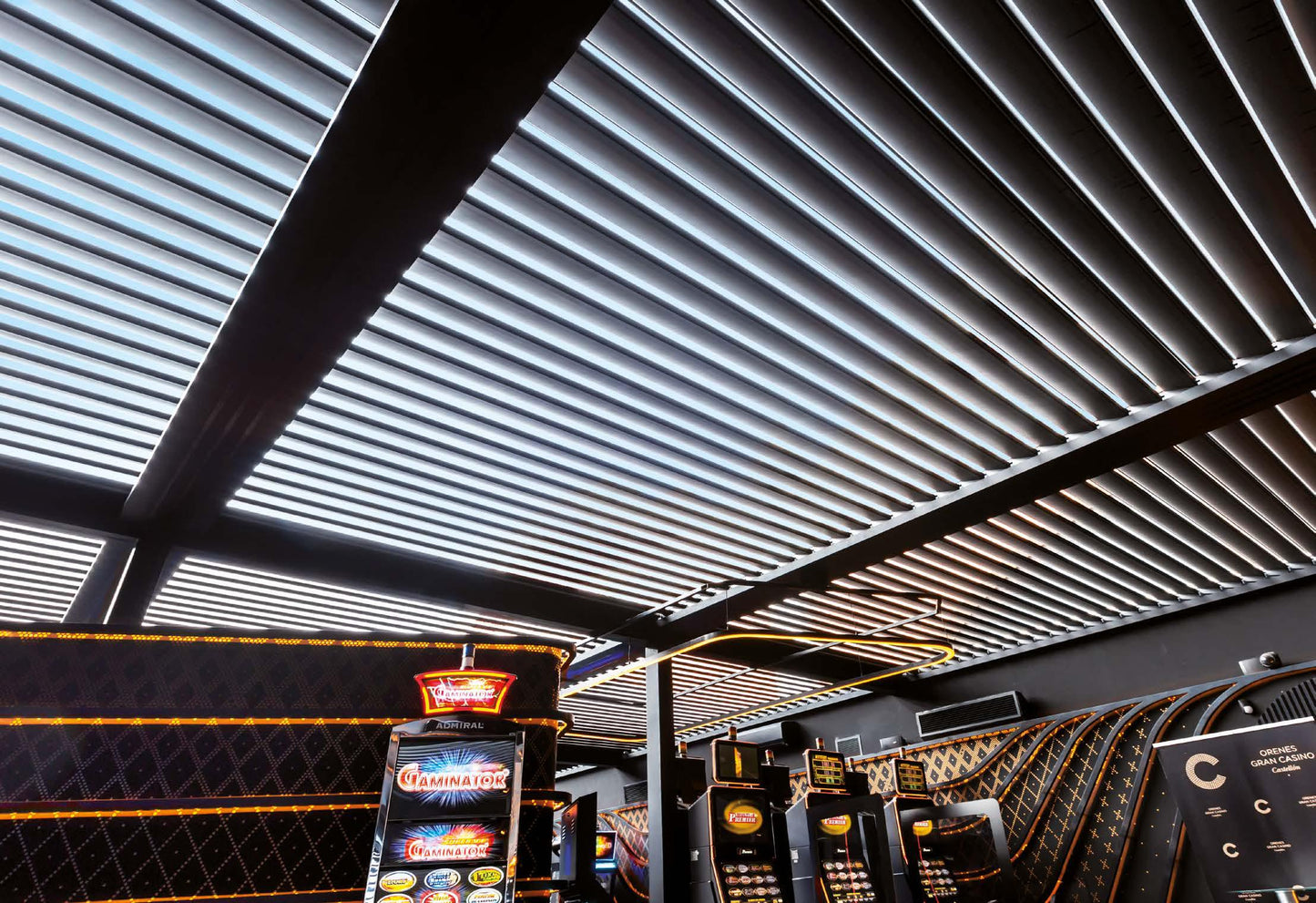

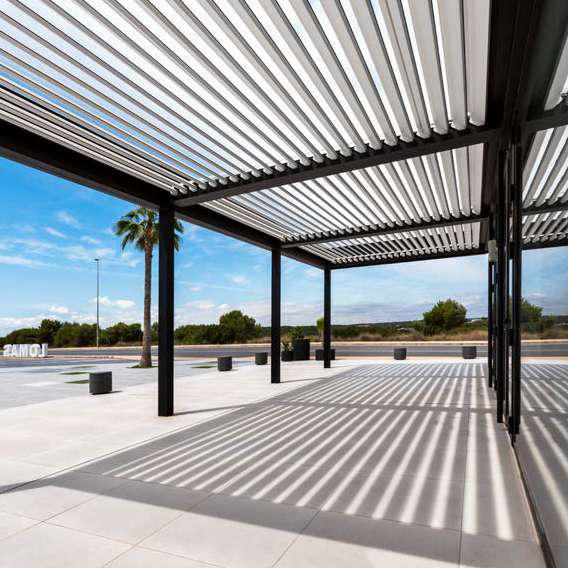

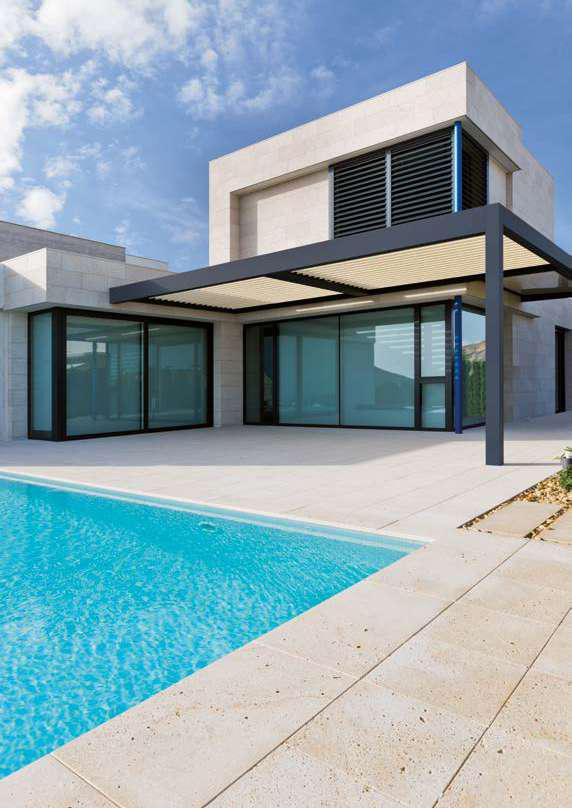

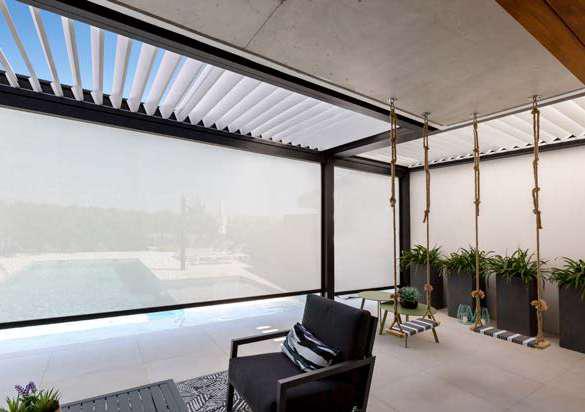

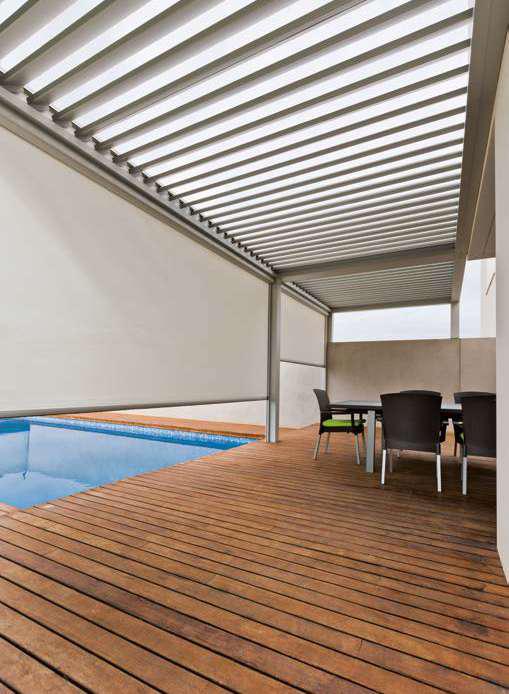

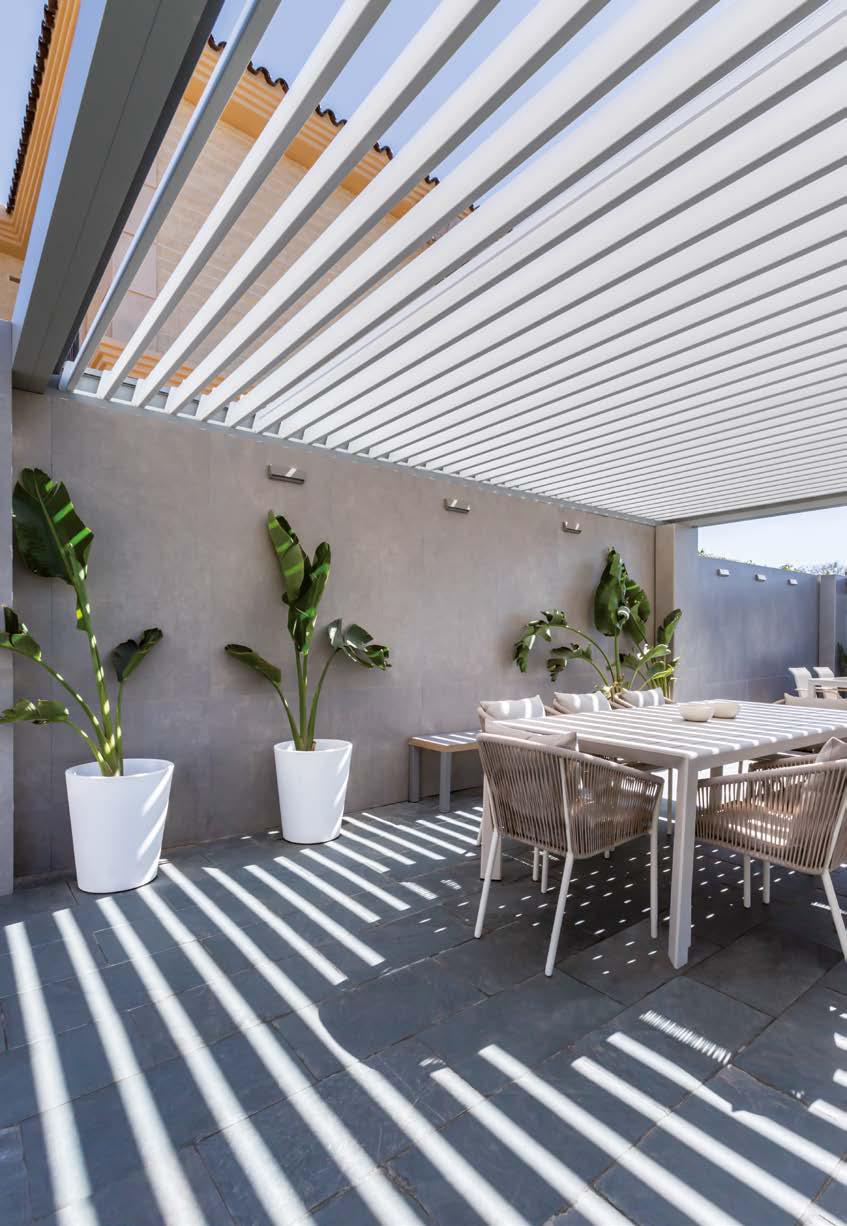

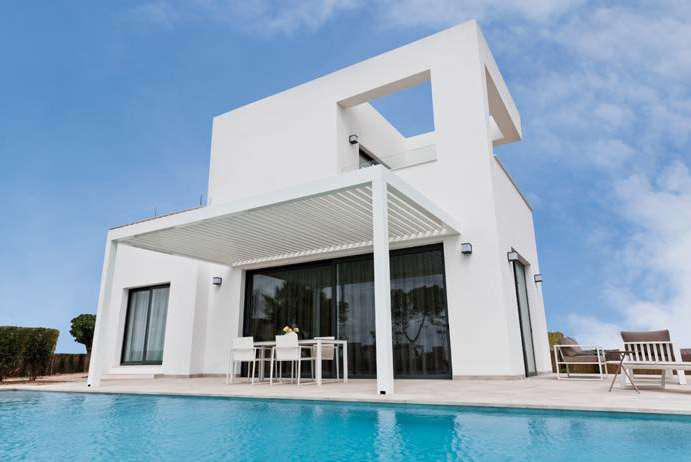

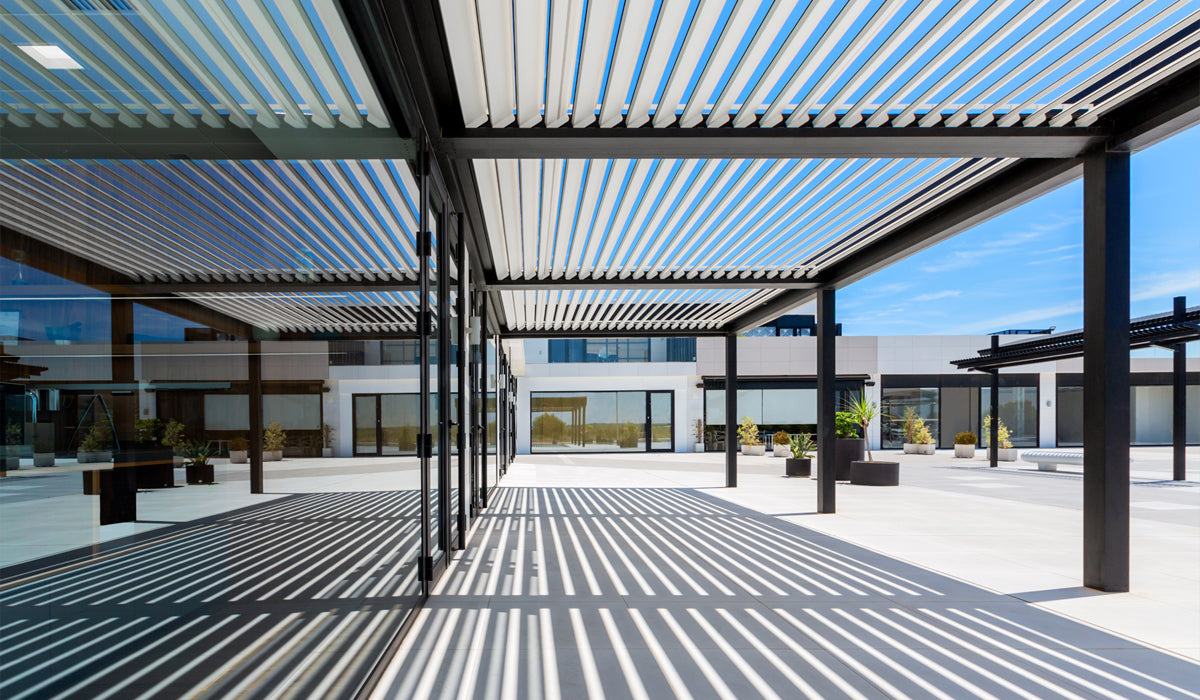

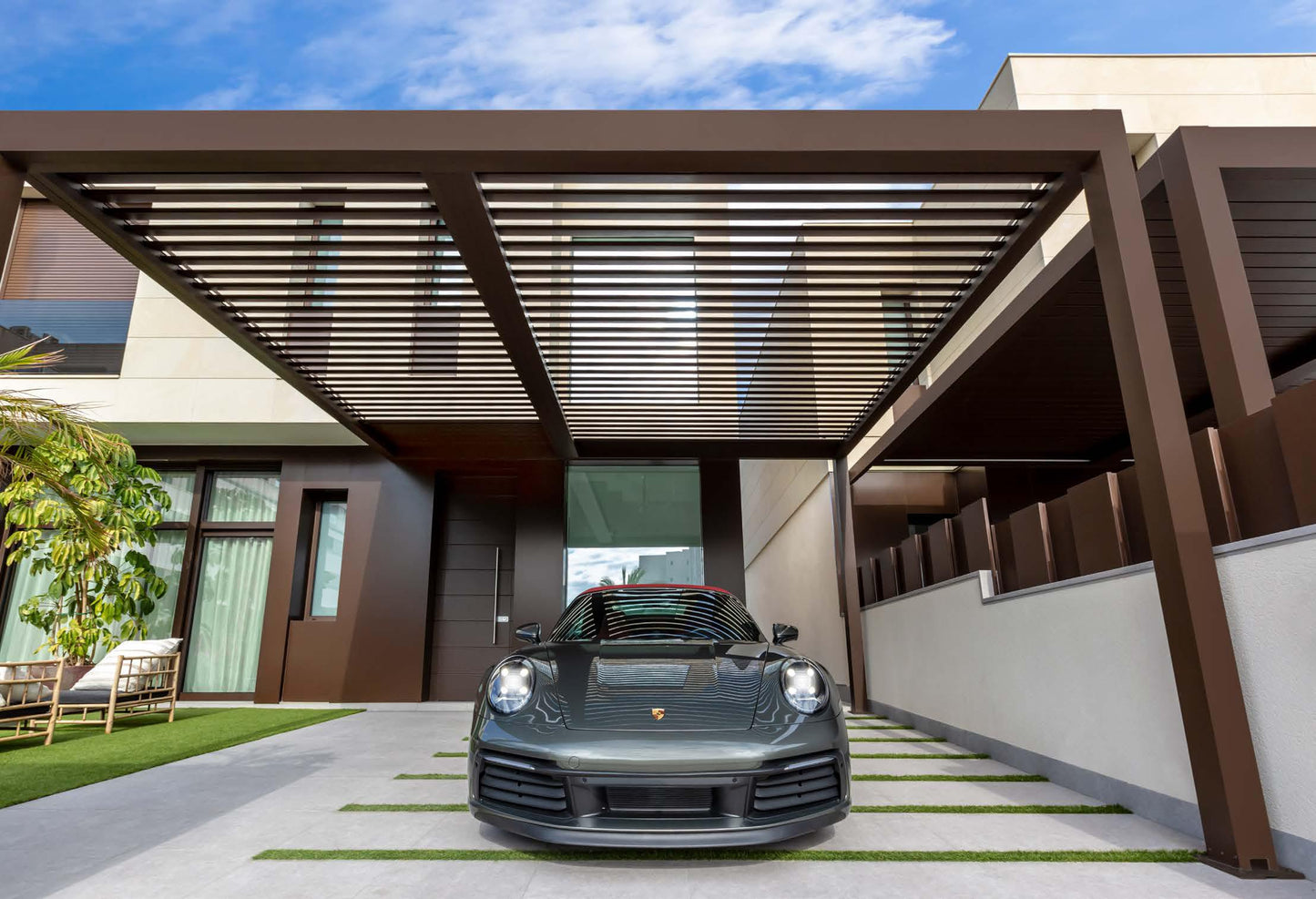

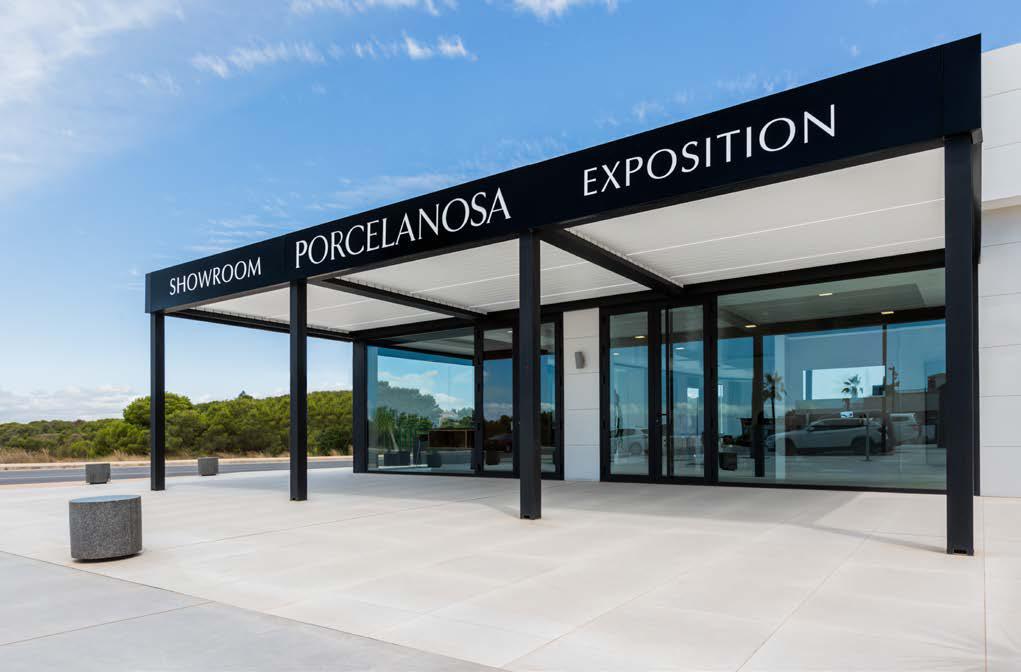

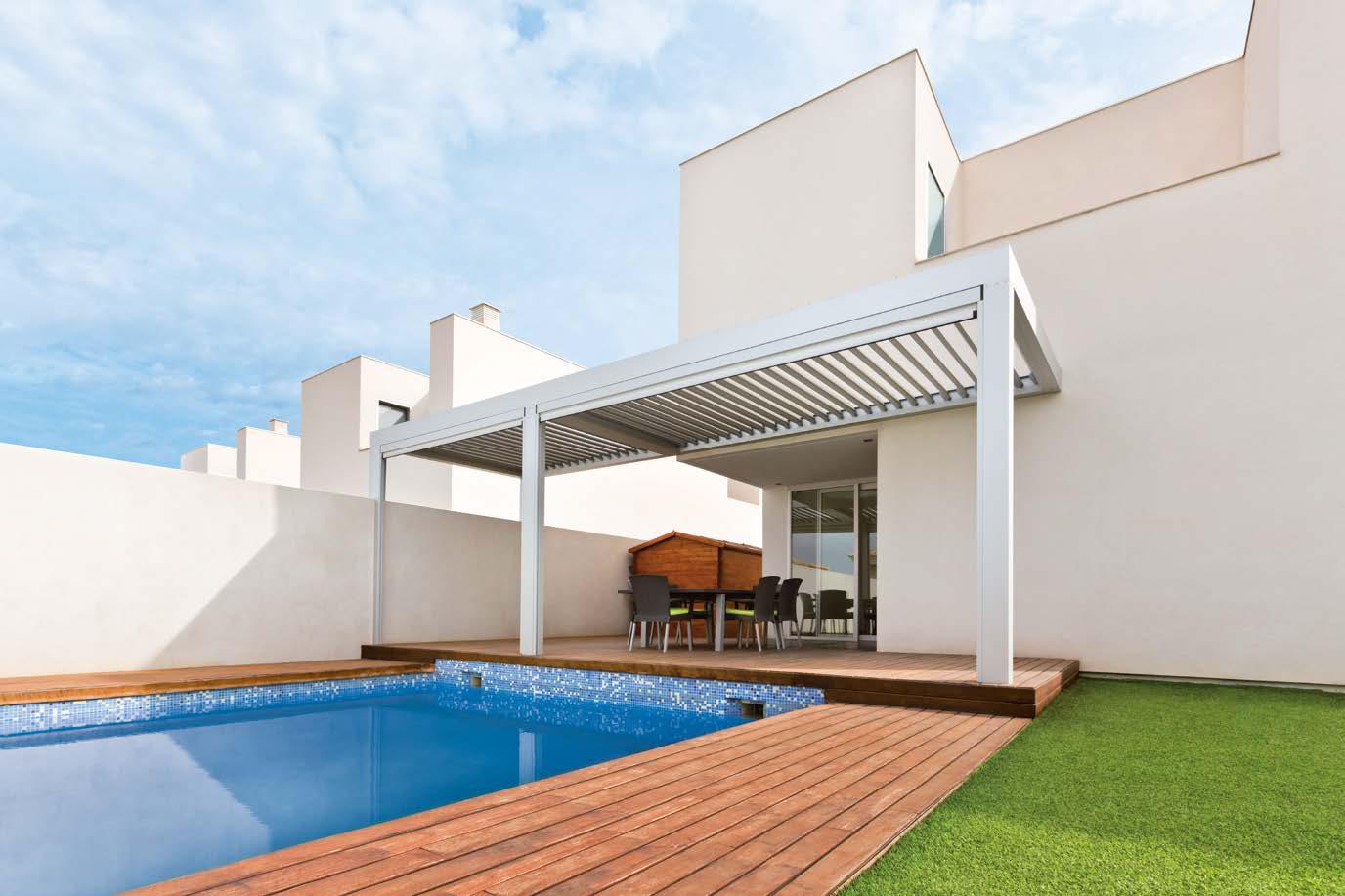

The bioclimatic pergolas They are structures with adjustable slats that allow light and ventilation to be regulated, adjusting the thermal sensation at any time and being able to cope with wind, cold and heat.

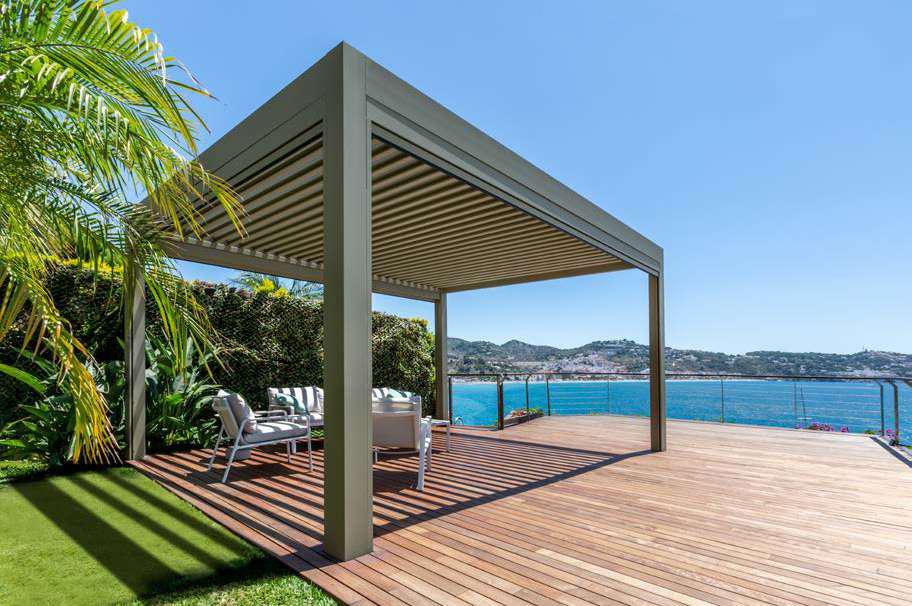

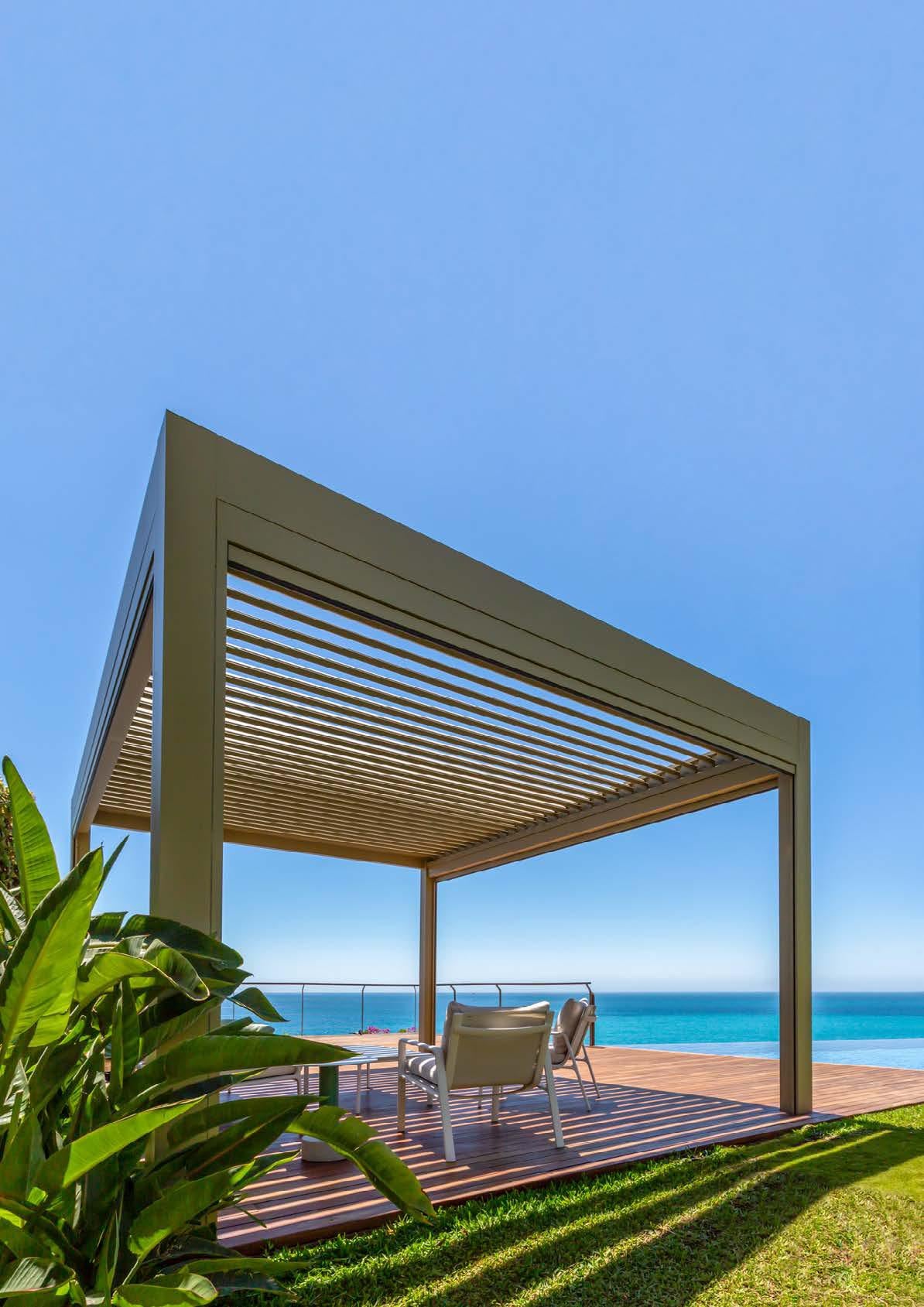

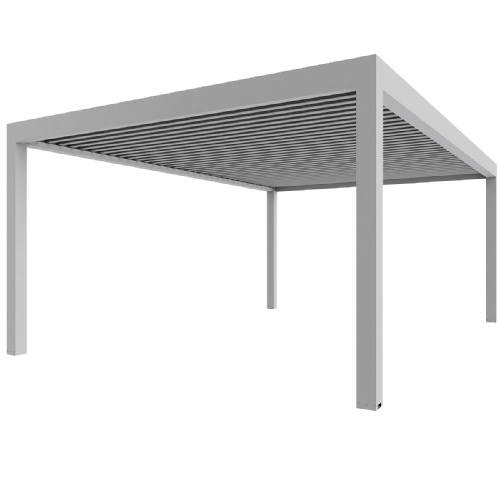

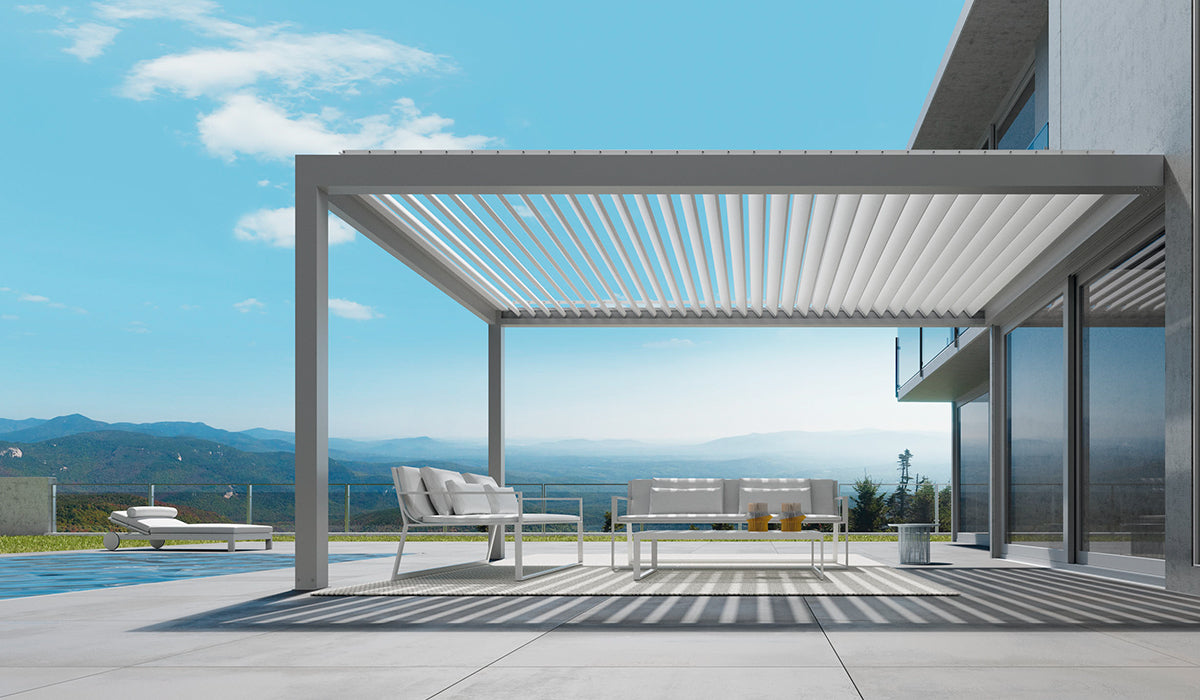

The P-190 is a bioclimatic pergola with a careful design of current lines. A robust aluminum structure with adjustable slats, which offers optimal resistance to loads from snow, rain, etc.

It presents endless modulation possibilities and, together with the high quality of its materials, makes it the ideal solar protection solution to adapt and enrich all the architectural styles where it is installed.

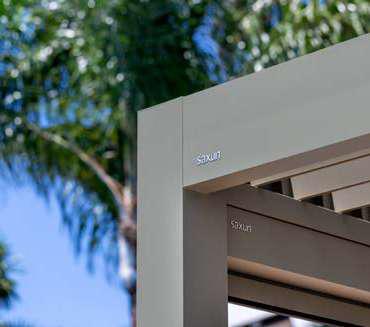

The new P-150 is a model with similar characteristics to the P-190 model. It has a design of clean lines that allows it to adapt to all architectural styles.

This pergola has great advantages in its installation. Assembly time is minimized, making this a quick and easy task, since certain profiles are clipable, so they do not require screws.

The assembly of its slats is also agile thanks to the spring-loaded retractable shaft.

System caracteristics:

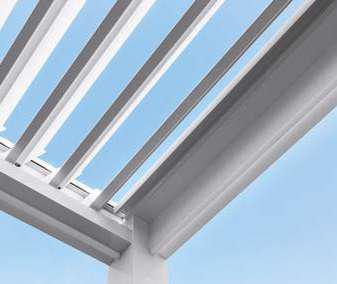

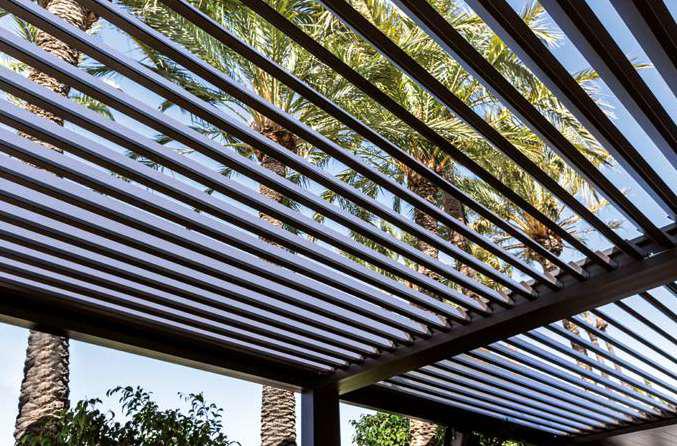

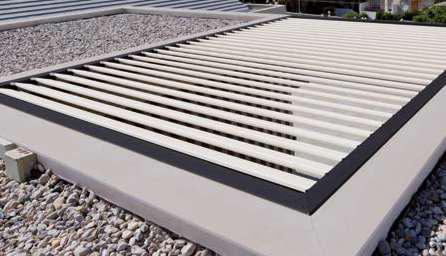

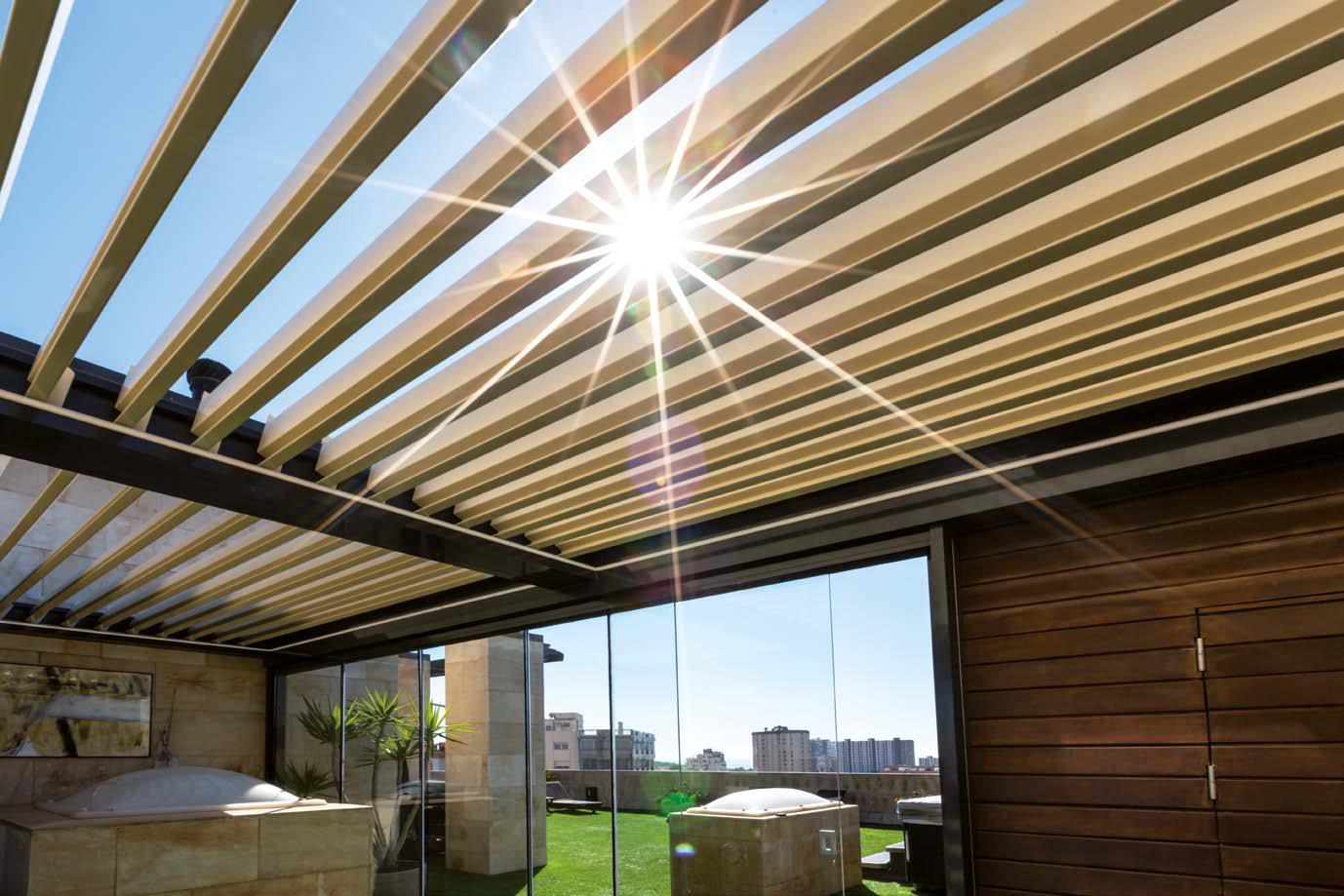

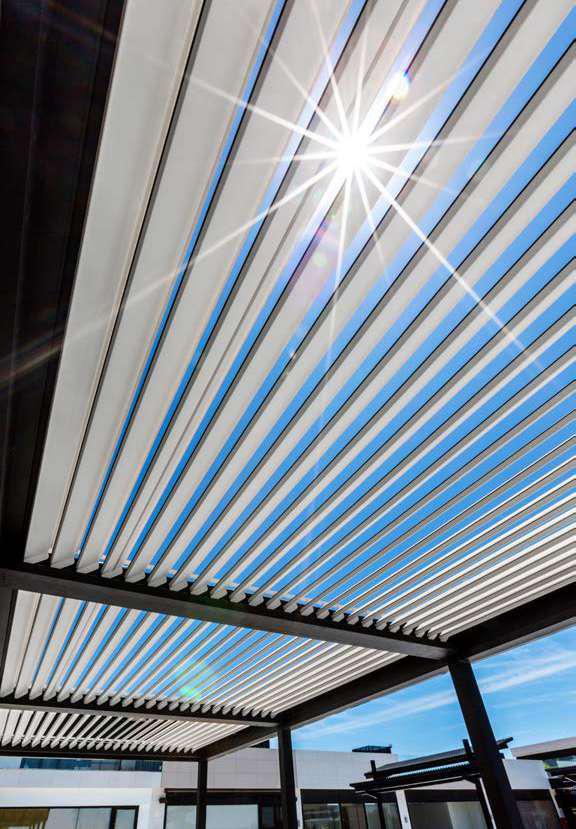

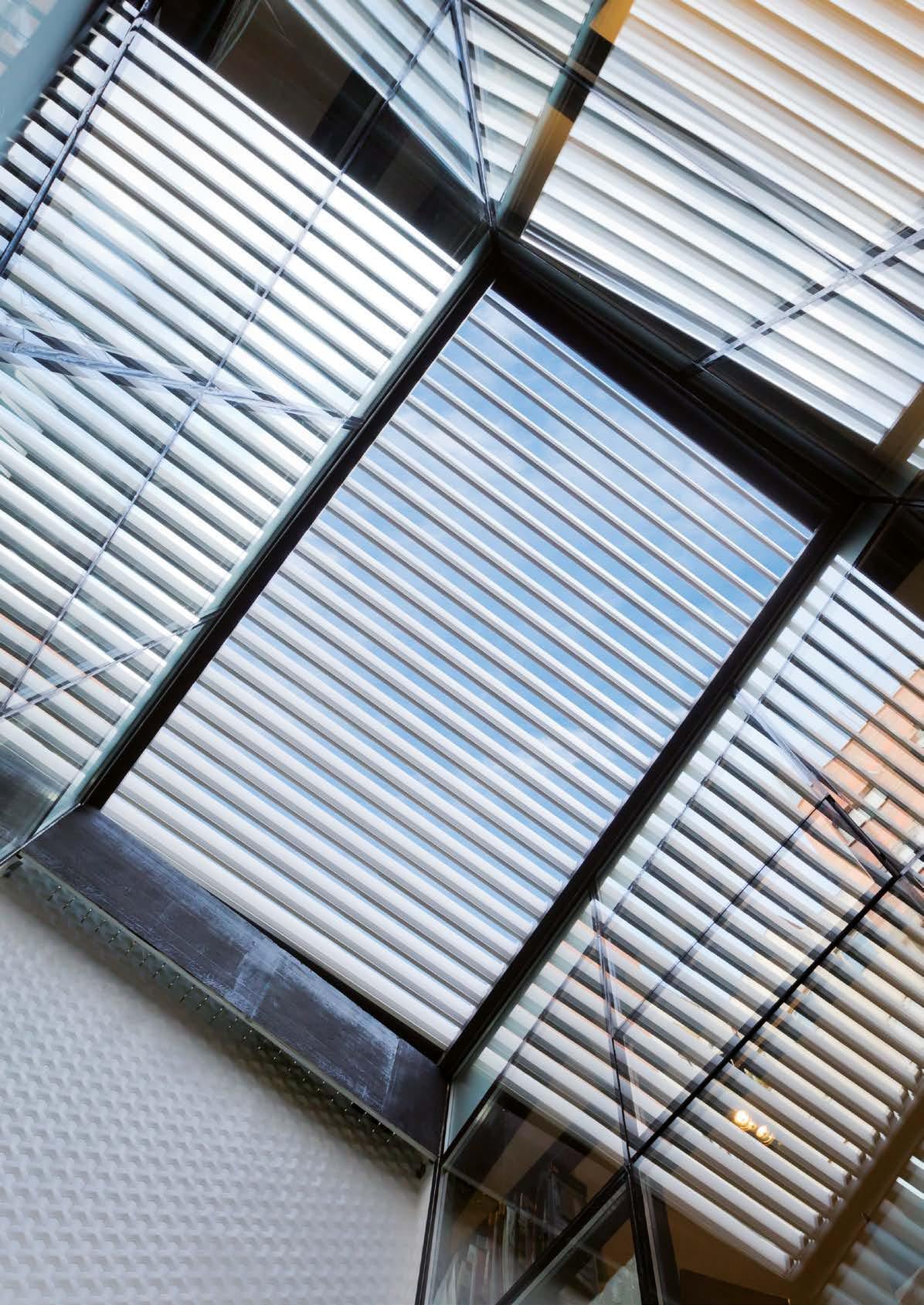

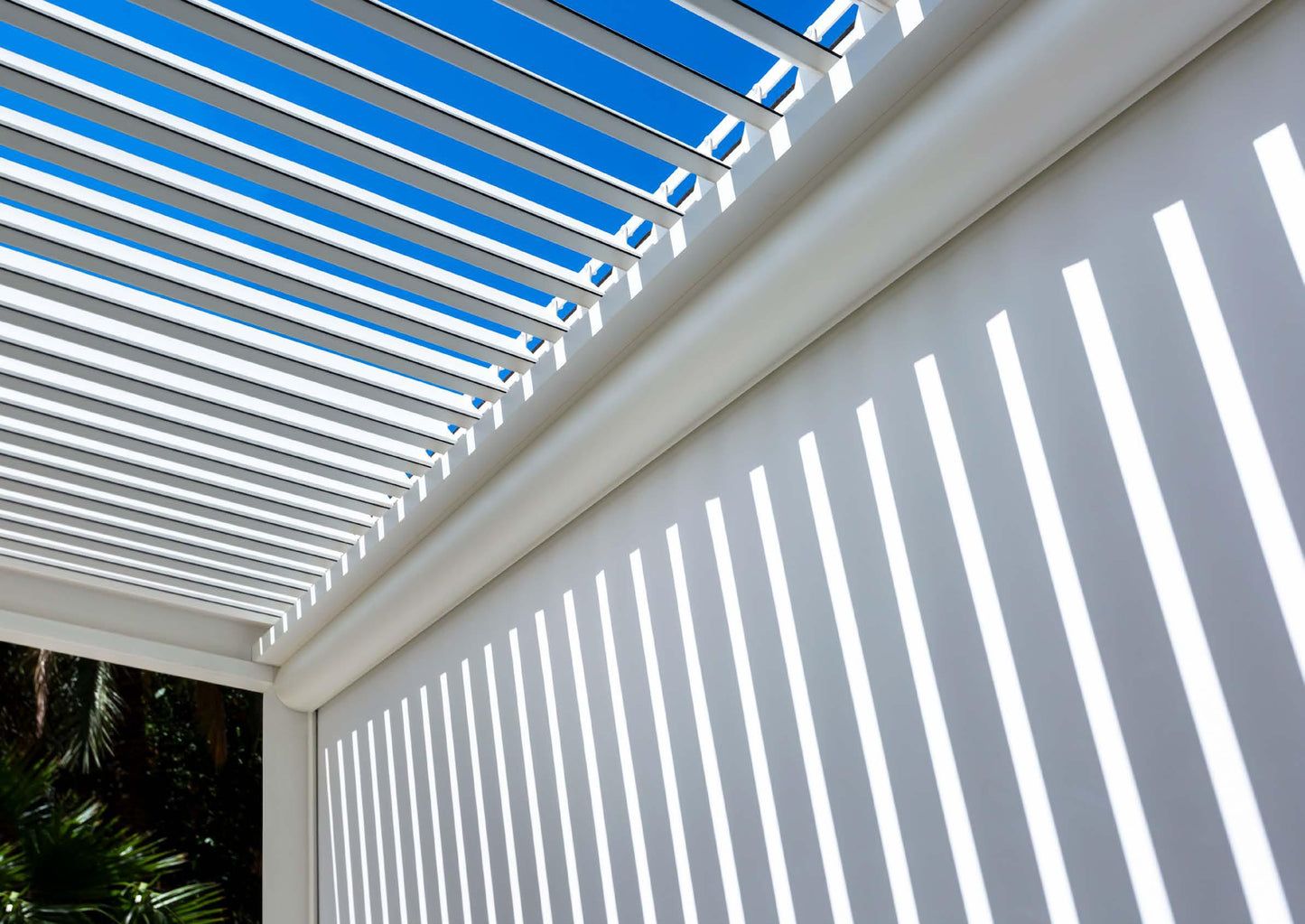

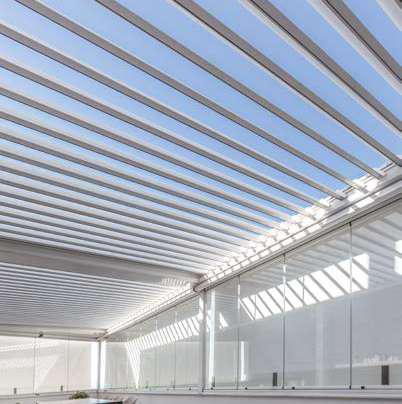

WATERPROOF BREATHABLE COVER: Adjustable slats from 0º to 135º.

REGISTERED PERIMETER SEALING SYSTEM: Registered perimeter sealing system against transverse rain and anti-vibration due to gusty wind. Custom manufacturing.

MATERIALS: 6063 T5 aluminum, stainless steel and polyacetal (POM).

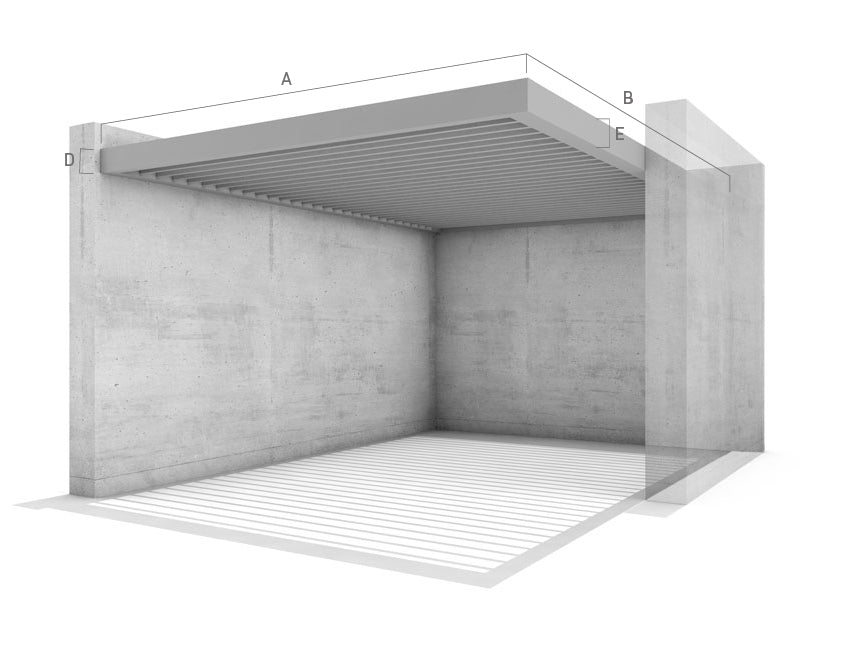

DIFFERENT TYPES OF ASSEMBLY: Custom manufacturing.

RAINWATER CHANNELING: Free drainage or slab channeling.

MOTORIZED DRIVE: 24 Vdc motor (safety voltage), promoting greater safety against electric shock. Additional grounding safety.

USEFUL BLADE DIMENSION: 165x40 mm.

FINISHES: Under specification Qualicoat, Qualideco, Qualanod. Allowing the finish in normalized RAL, anodized or lacquered in imitation wood.

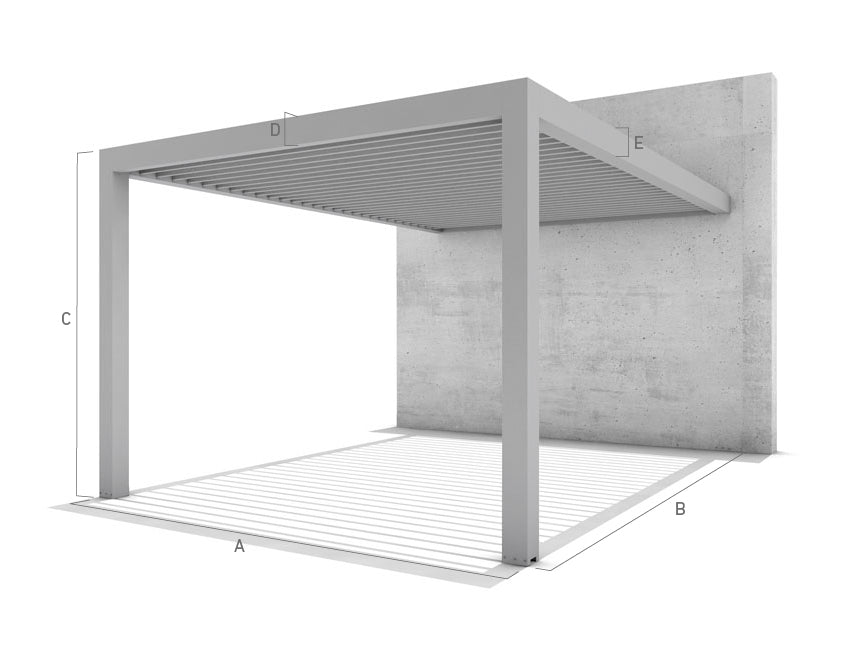

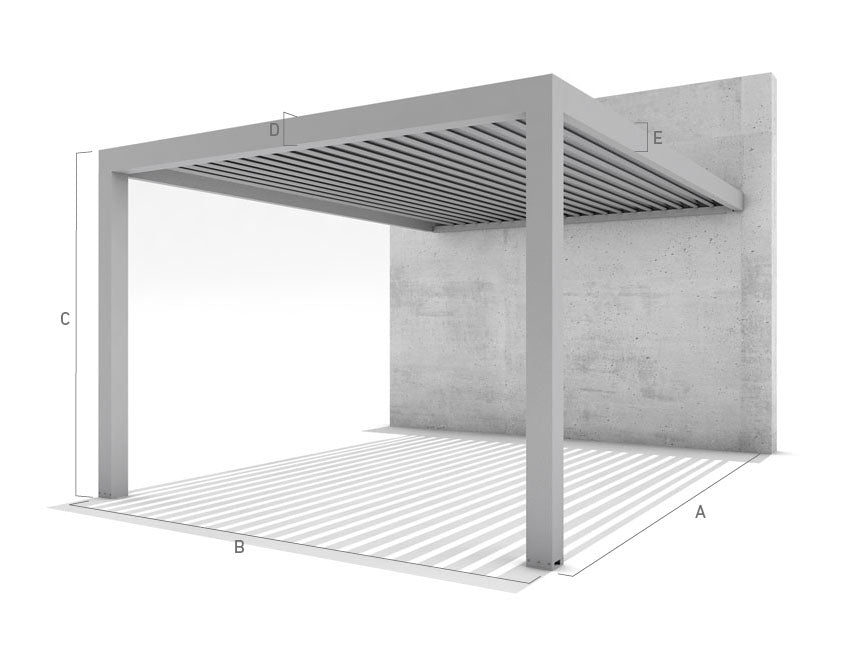

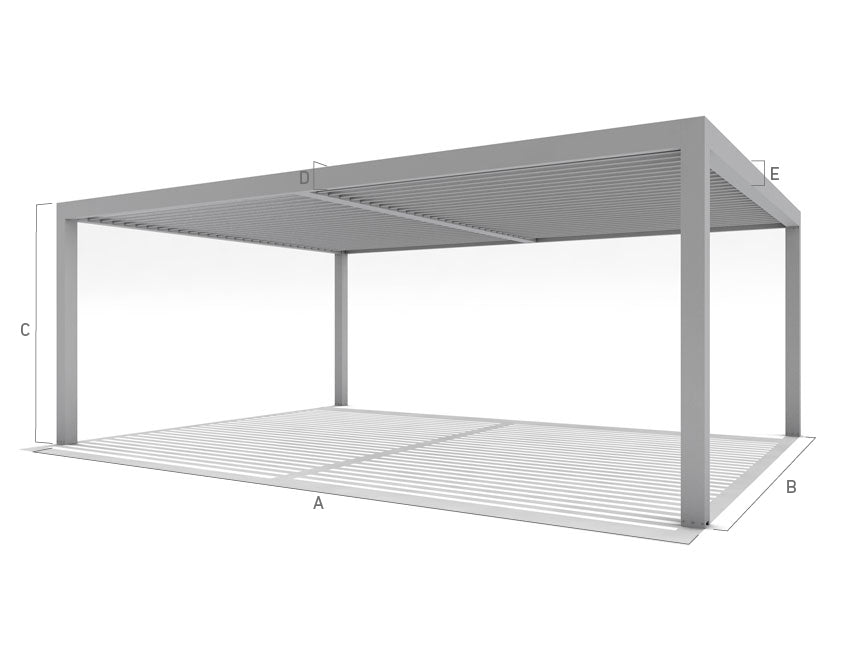

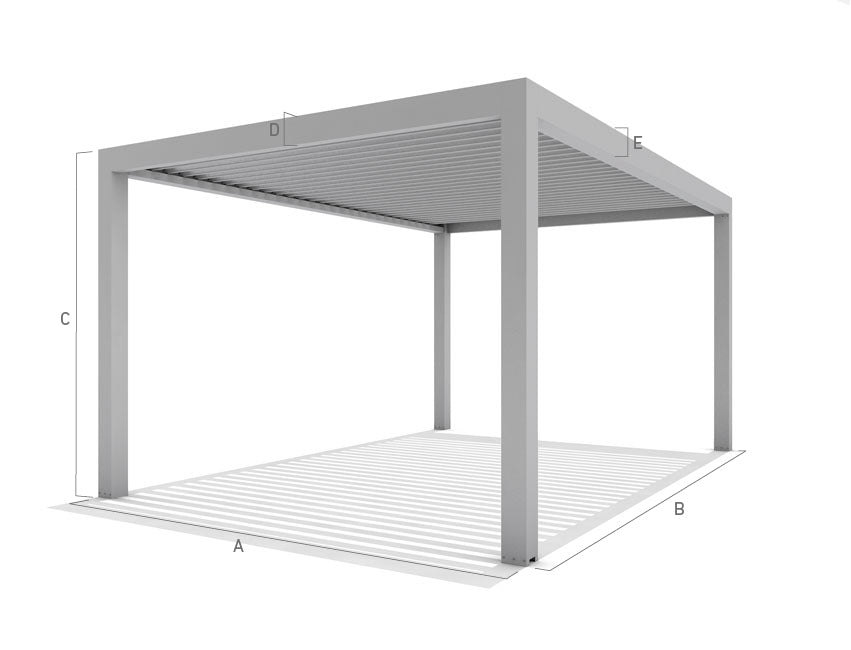

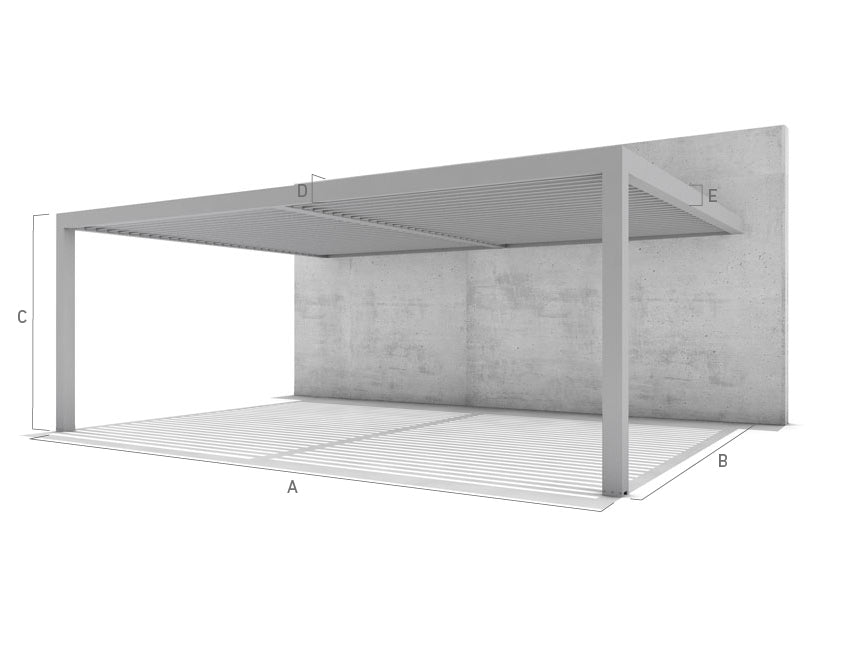

MAXIMUM DIMENSIONS: Height: 3,000 mm, width: 4,200 mm, length: 6,200 mm.

SECURITY: Hidden electrical installation drains and conduits.

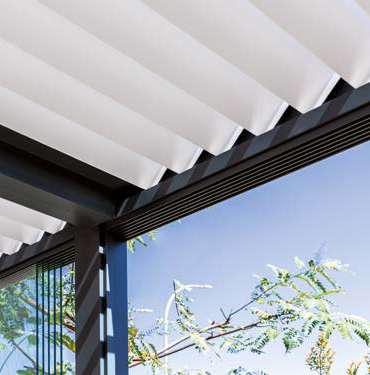

WATERPROOF SYSTEM: The slats integrate a sealing rubber that ensures the waterproofing of the pergola, since it does not allow water to pass through at the junction between slats.
At the same time, it cancels out the noise that occurs between slats due to the vibration caused by the action of the wind.

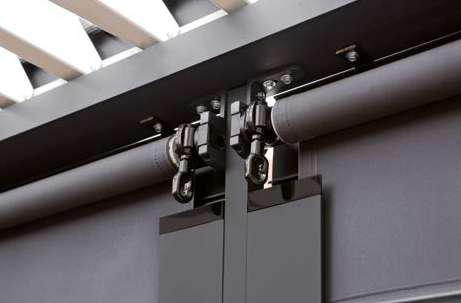

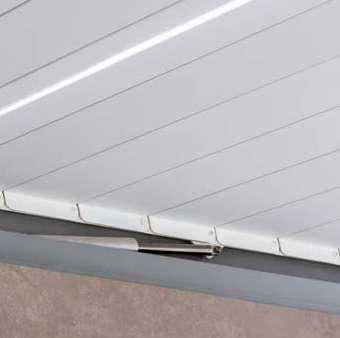

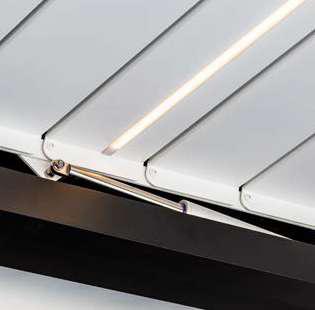

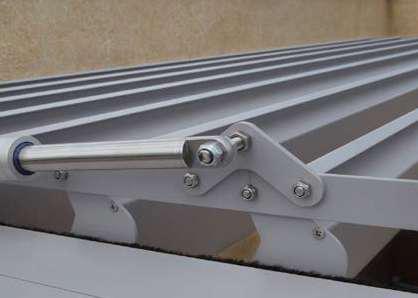

MOTORIZED DRIVE: The use of the pergola is carried out exclusively by motorization, using a 24 Vdc motor. This will also ensure your safety from electrical shock, with additional grounding safety. A motorization that is discreetly hidden between slats and frame, favoring the aesthetics of the pergola.

REGISTERED PERIMETER SEALING: Registered system that acts against transversal rain and that also does not allow direct and/or reflection light to pass through at the junction points between slats and between slats and frame. Avoids the possible sound caused by the frame rubbing against the ends of the slats and the movement caused by the action of the wind.
